Wagner Tuning Kia Stinger GT Competition Intercooler inc. Ø76mm Pipe Kit

COMPETITION INTERCOOLER KIT Kia Stinger GT 3.3T-Gdi AWD RWD (EU)


The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 600 mm x 445(315) mm x 105(60) mm / 23,6Inch x 17,5(12,4)Inch x 4,1(2,4)Inch [stepped design], which was developed especially for the requirements of the Kia Stinger GT.
This high-performance core offers an 175 % larger frontal surface and 183 % more core volume compared to the stock intercooler.

The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow by using a specially prepared air baffle. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

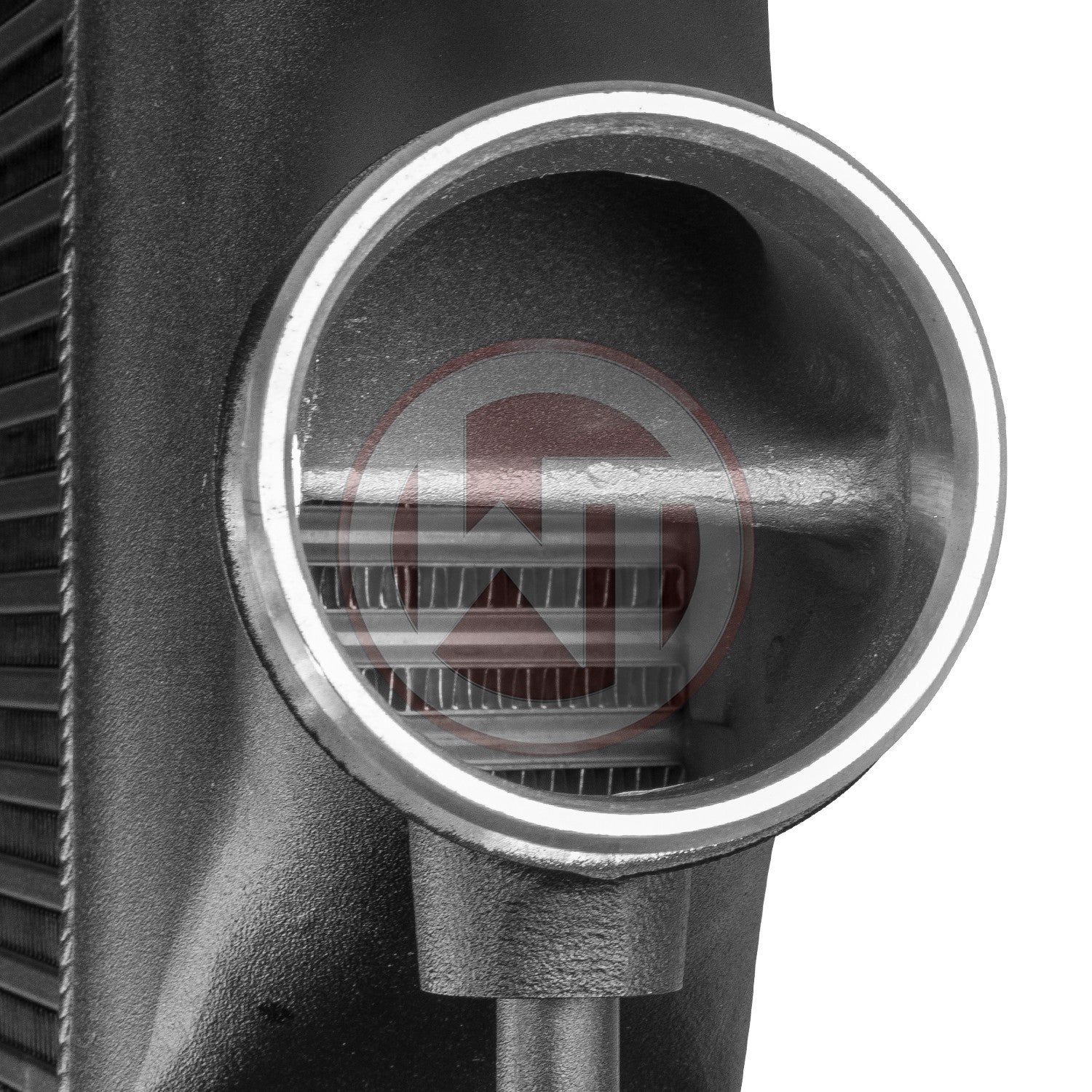

Inlet diameter: Ø76 mm/3 Inch ; Outlet diameter Ø76 mm/3 Inch
This intercooler kit is optionally available with Ø76mm(3 Inch) charge pipe!


Dimensions stock intercooler:
V = 8,75 L / 534 Inch³
A = 972 cm²/ 15066 Inch²

Dimensions WAGNERTUNING intercooler:
V = 24,8 L / 1513,4 Inch³
A = 2670 mm²/ 41385 Inch²

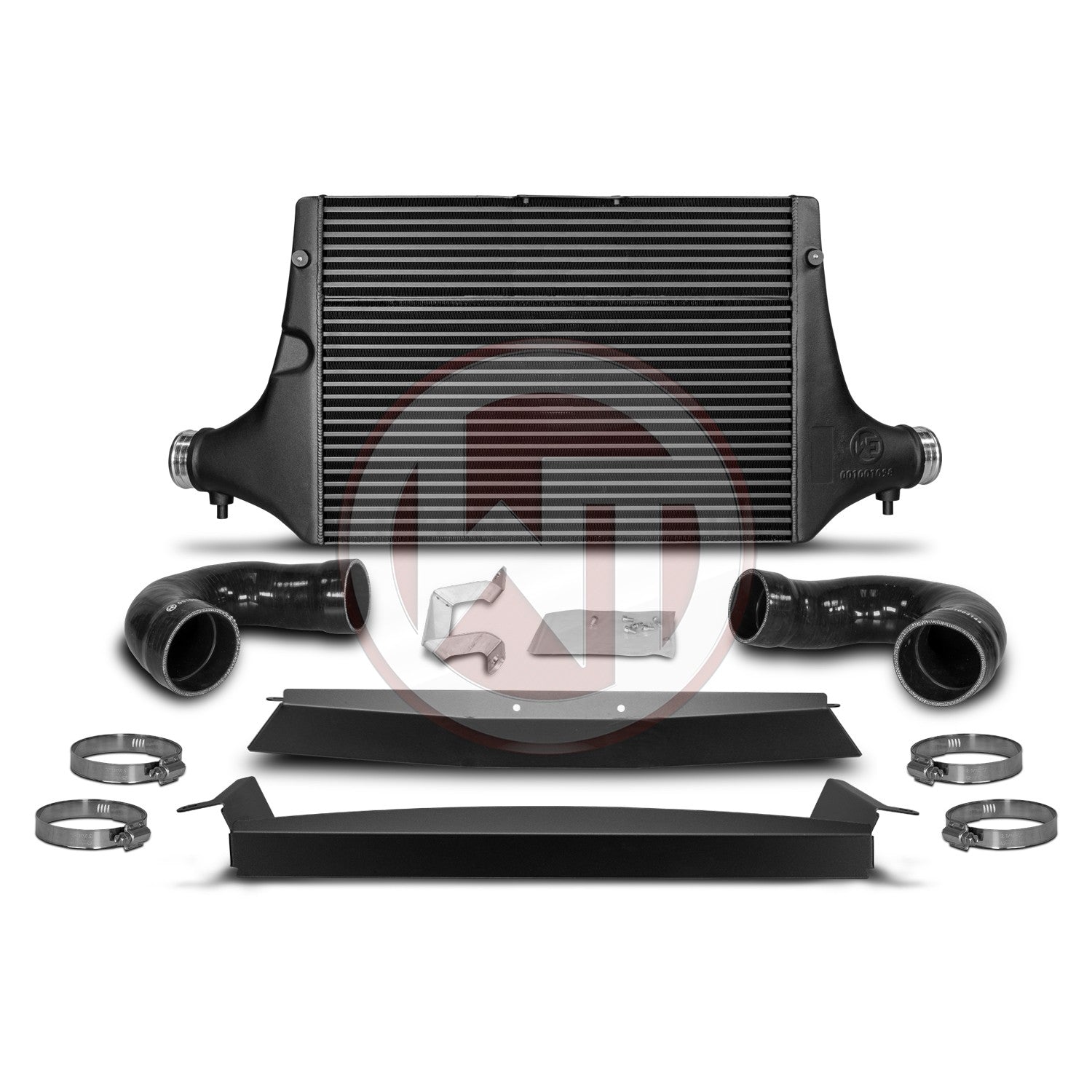

kit comes with:
1 intercooler
2 air baffle
1 Ø3 Inch charge pipe (optinal)
2 silicone hoses (black)
1 mounting material
1 installation instruction
