Wagner Tuning Audi RS3 8P EVO3 Competition Intercooler Kit

Competition Intercooler Kit EVO3 for Audi RS3 8P now available with TÜV certificate and two different intercooler core options


Important note:We recommend to use the standard version for power applications up to 600HP and the X-version for power application above 600HP.

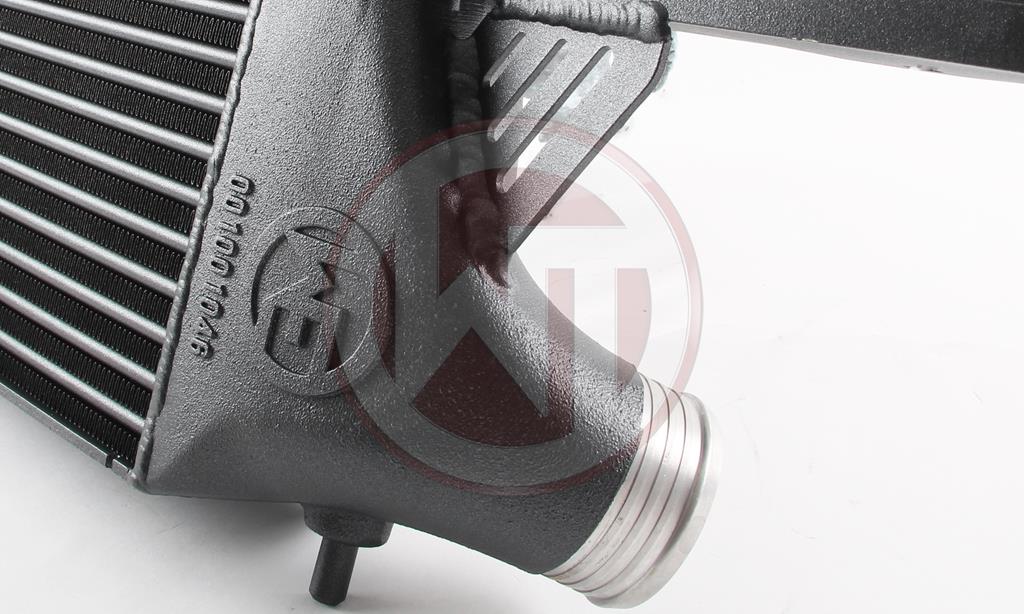

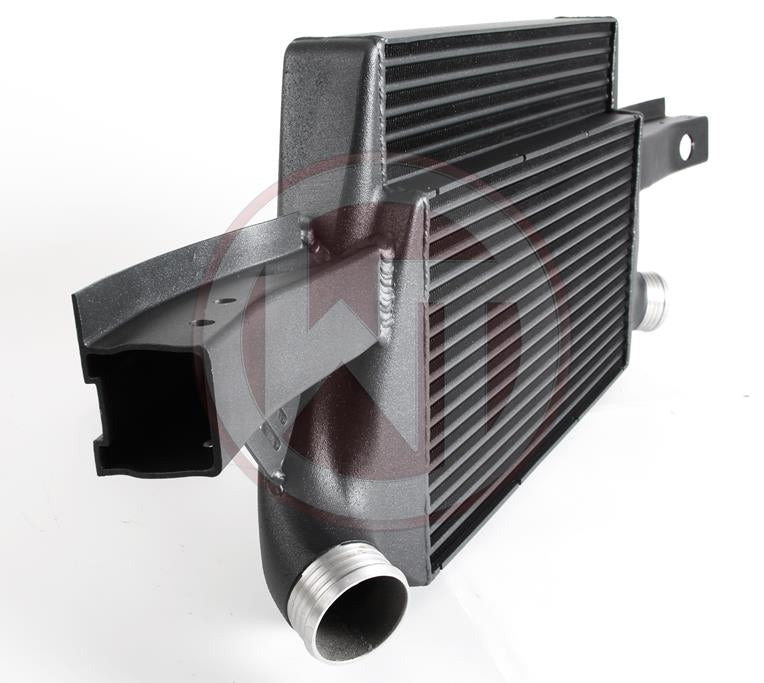

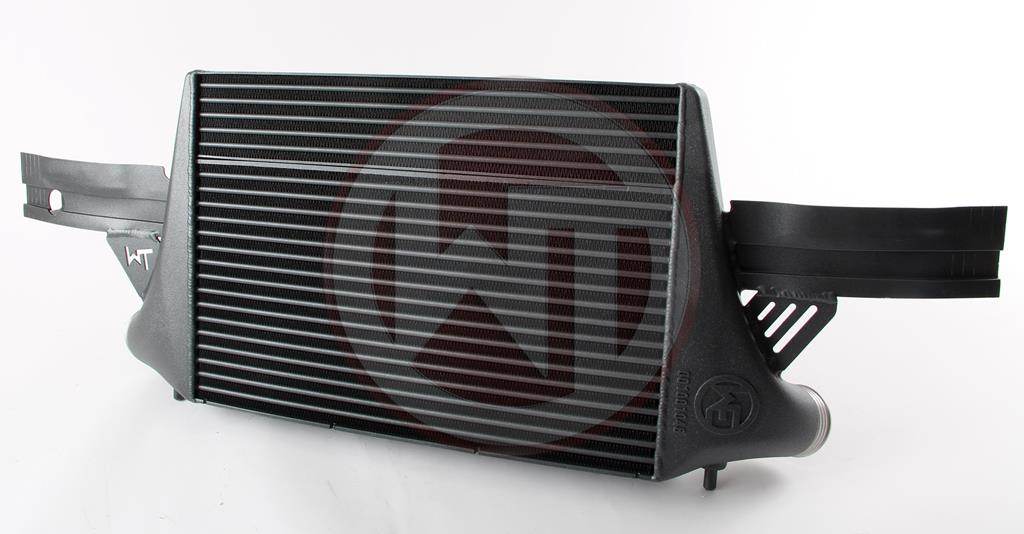

The high performance intercooler has the following core dimension (515mm x 367 [274] mm x 95mm) and thus offers a 120% larger cooling surface and 142% more charge air volume compared to the original intercooler. The newly developed competition core granted the adjacent components, for example watercooler, sufficient airflow and is also very light. The endtanks of the intercooler are made ??of cast aluminium and have been optimised under flow analysis in the CAD system. With the help of additional air baffles, inside inlet, providing for a uniform filling of the intercooler. The result is excellent cooling properties with minimum back pressure. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.2 kg. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! On both sides the connection diameter is 68mm.

OEM intercooler: cooling surface 856cm² / charge air volume 6,8L
WT EVO1 Performance: cooling surface 856cm² / charge air volume 9,4L
WT EVO2 Competition: cooling surface 1391cm² / charge air volume 13,2L
WT EVO3 Competition: cooling surface 1890cm² / charge air volume 16,5L

packing list:
1 intercooler including crossmember
1 mounting material
1 set licenceplate holder
1 installation instruction
