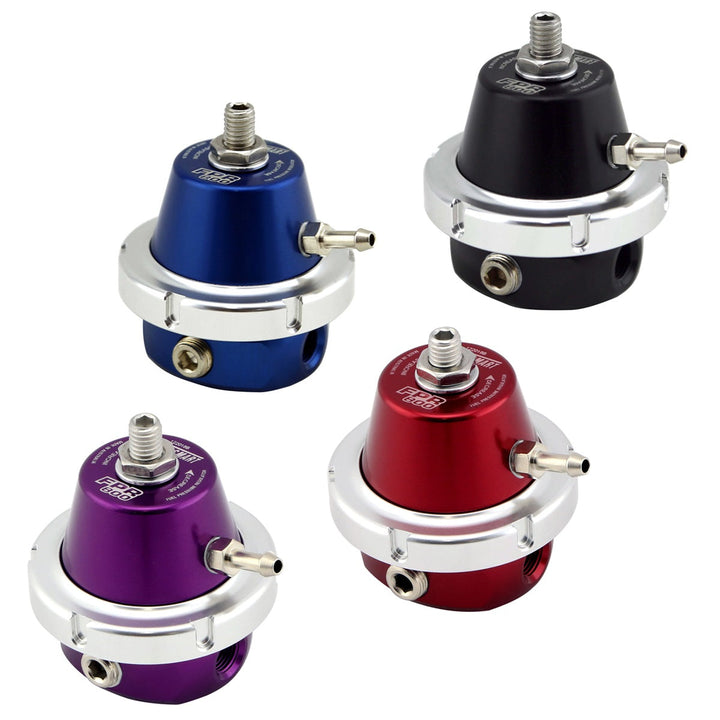

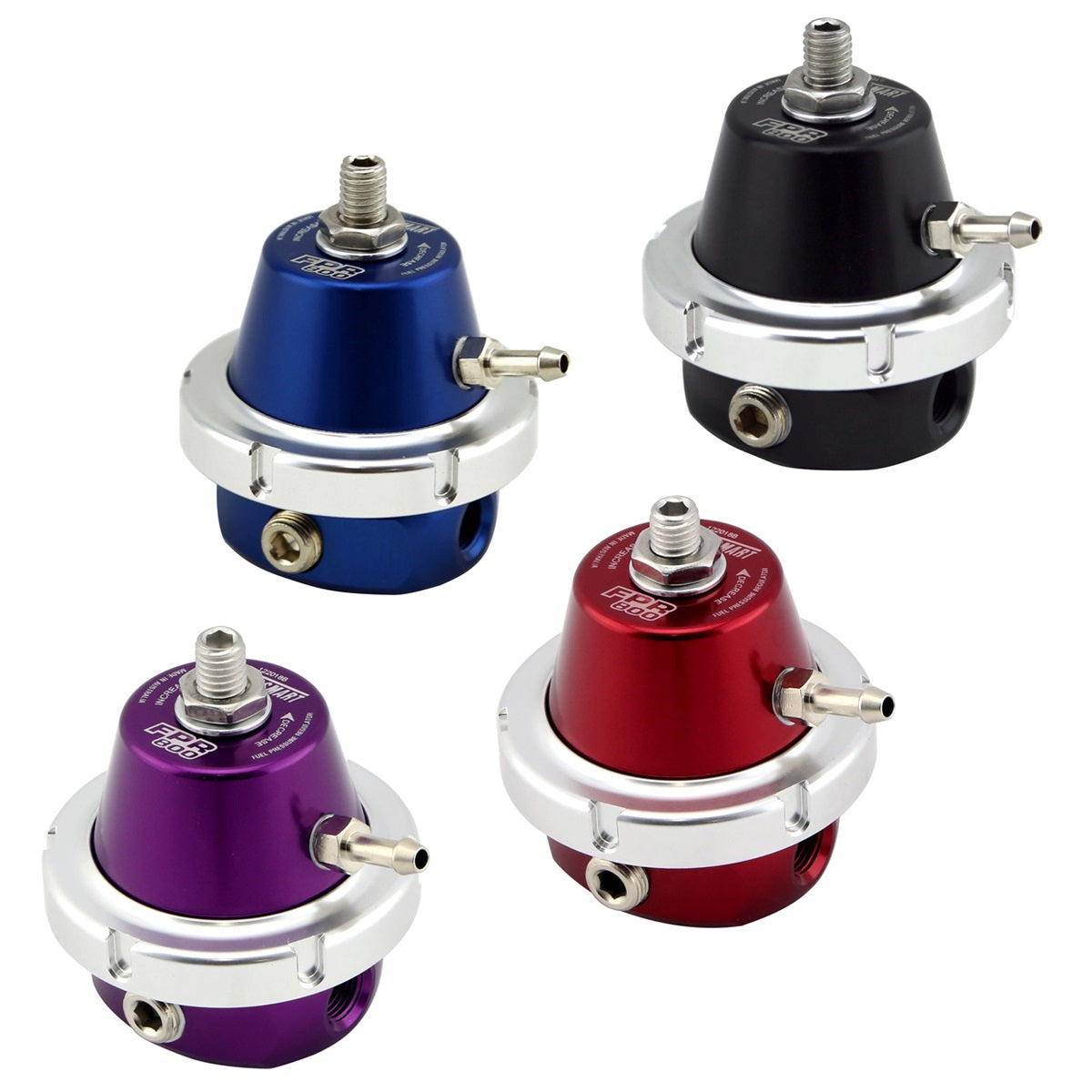

Turbosmart Adjustable Fuel Pressure Regulator

Turbosmart Adjustable Fuel Pressure Regulators are made from high quality billet aluminium and are hand made for ultimate accuracy.

The unique internals maintain constant fuel pressure above manifold pressure and are ideally suited for uprated fuel systems where fuel pressure adjustments are desired as well as maintaining a stable pressure.

Designed to cope with high flow rates on big BHP engines and features unique internals allowing them to be used with all types of race fuels.

Can be used with either electric or mechanical fuel pumps, and can be used with any pressure gauge.

Suitable for all fuel types, including race fuel and aggressive leaded fuels.

Adjustable fuel pressure between 30-80PSI at a ratio of 1:1 with manifold pressure (at base ratio).

Supplied with mounting bracket & installation instructions.

Choice of 3 fuel pressure sizes.

Specifications:

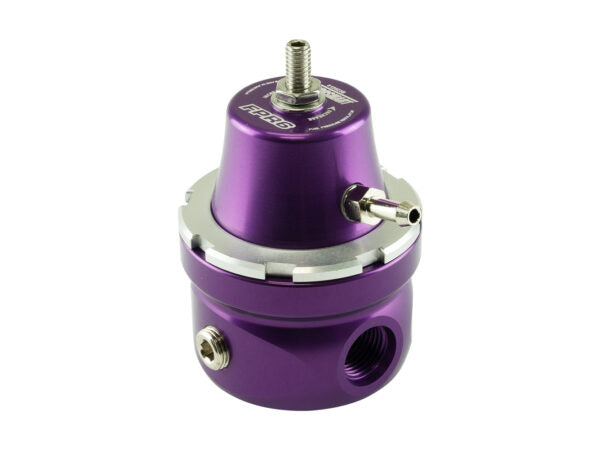

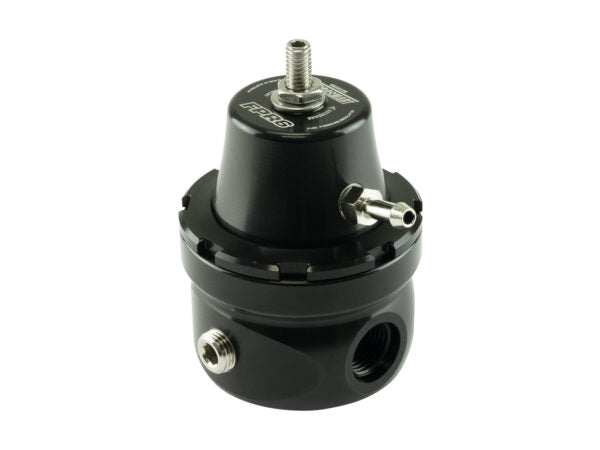

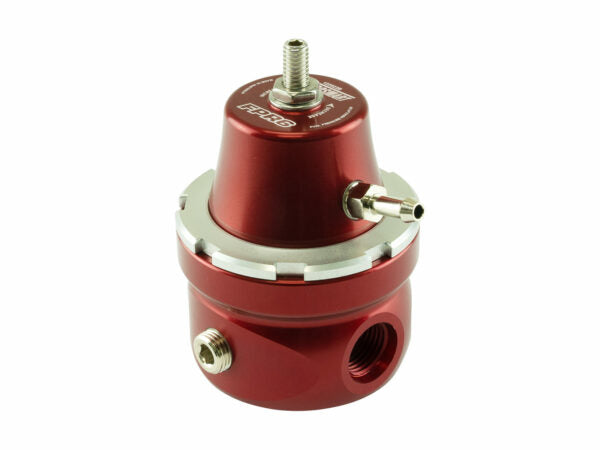

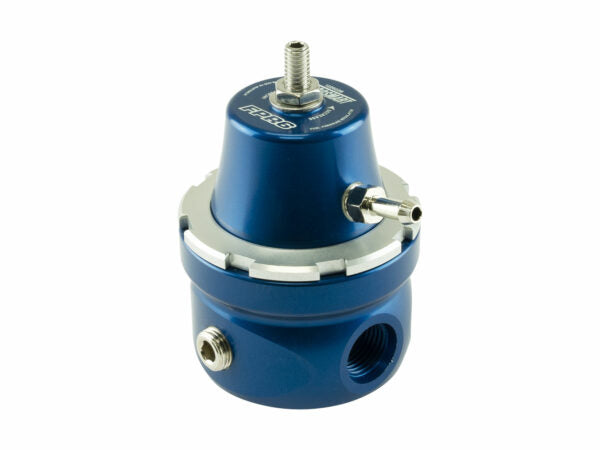

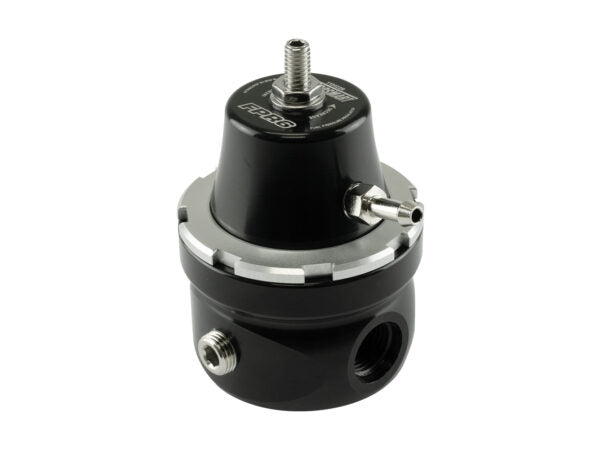

• FPR6: Rated up to 1200hp (1x AN6 inlet, outlet & return port)

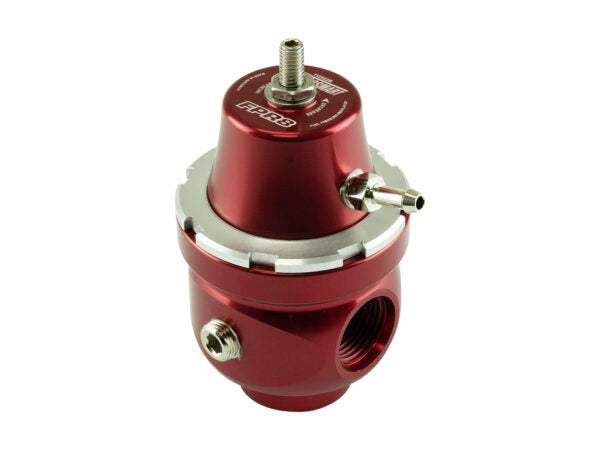

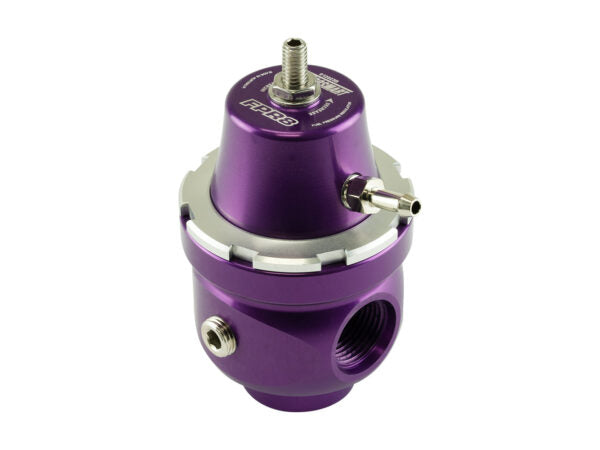

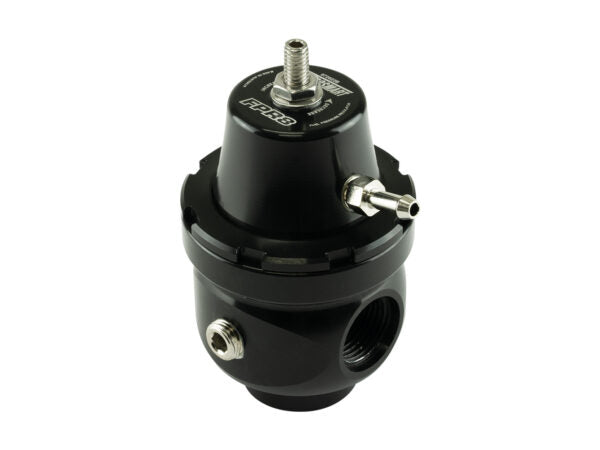

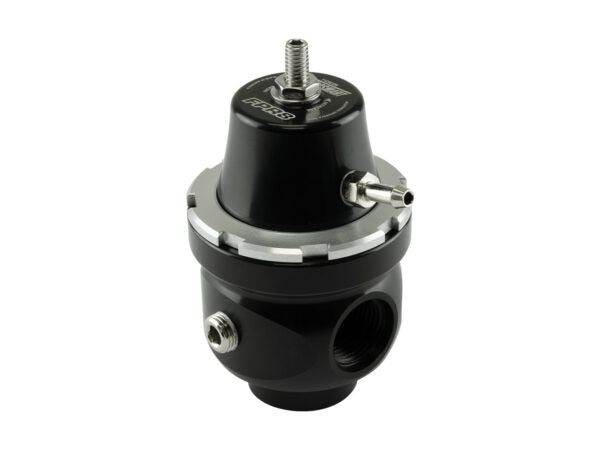

• FPR8: Rated up to 2000hp (1x AN8 inlet, outlet & return port)

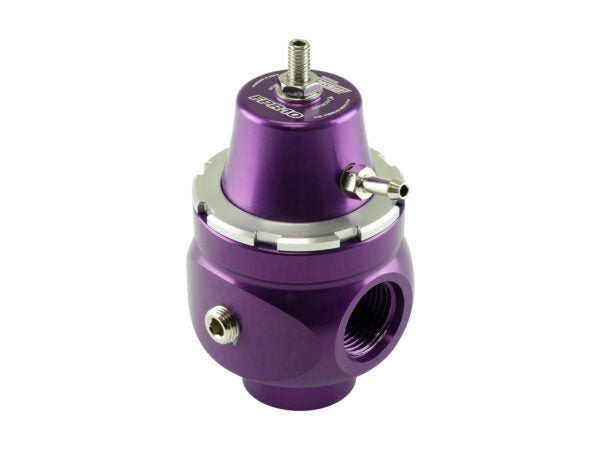

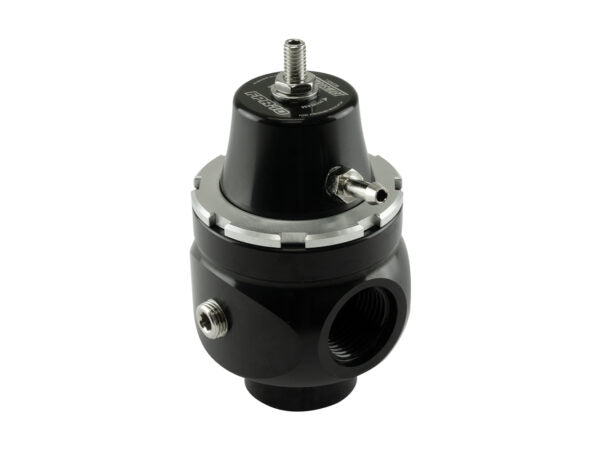

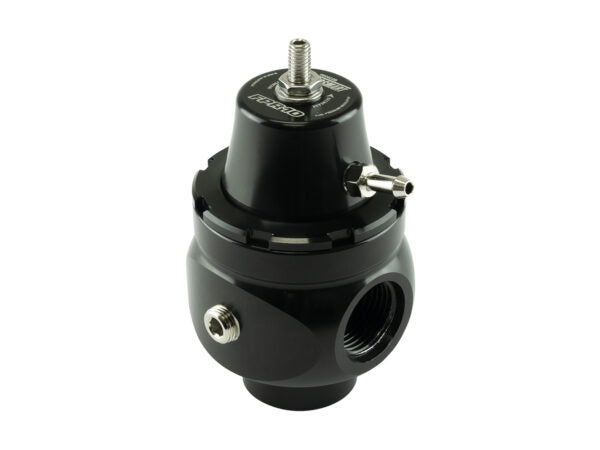

• FPR10: Rated up to 3000hp (1x AN8 inlet, outlet & return port)

Features:

• Stainless Steel Valve Seat
• Suitable for all fuel types
• 1:1 Class Leading Ratio and Response
• Adjustable Pressure
• 1/8 NPT Gauge / Pressure Sensor Port
• Unique Locking Collar Design
• Milspec Diaphragm
• Detailed Specific Fuel Flow Data and Spec

Dimensions:

• FPR6 - (77mm H x 57mm D)
• FPR8 - (85mm H x 57mm D)
• FPR10 - (91mm H x 57mm D)
