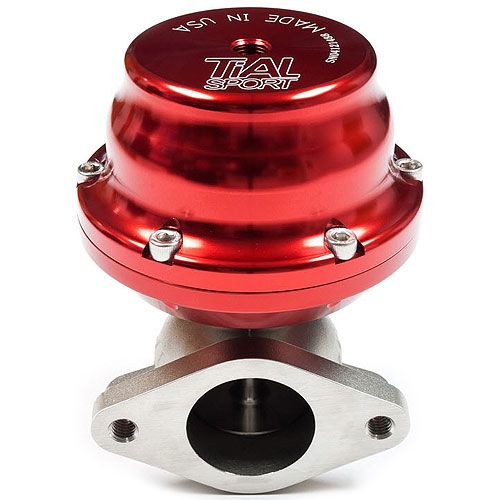

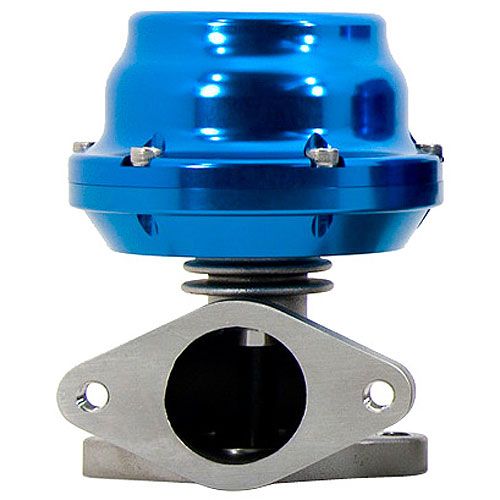

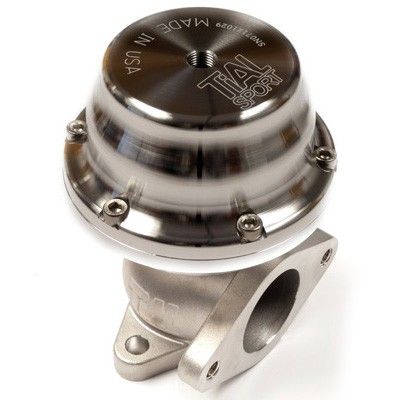

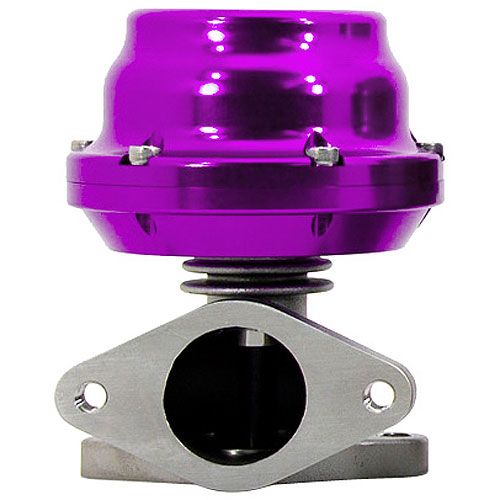

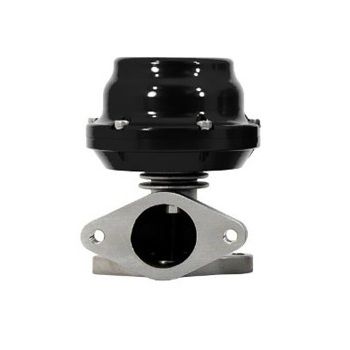

TiAL Sport F38 External Wastegate - 38mm

The TiAL Sport F38 External Wastegate is a classic 2 bolt flange wastegate that was first produced back in 2001 and it’s still going strong today!

The wastegate is the same as the MV-S, but with an inch taller body.

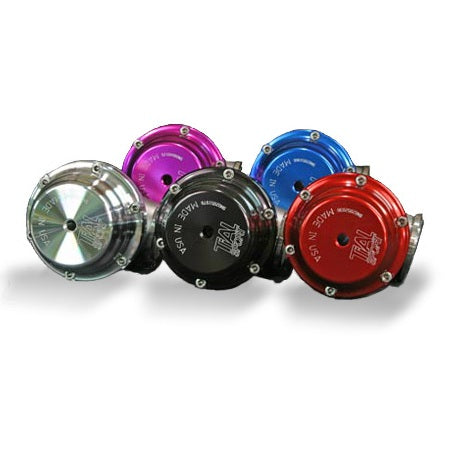

Available in Black, Blue, Red, Chrome or Purple.

TiAL Sport F38 External Wastegate features:

• High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
• High temperature silicone Nomex reinforced actuator diaphragm
• 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature to resist "relaxing" at temperatures to 483ºC
• Nitronic 60 Stainless Steel is used for the valve seat and valve bushing
• All Stainless Steel hardware
• Mating weld flanges are 304L
• Colour anodised aluminium actuator
• TiAL wastegates come with air fittings and necessary stainless hardware.
• 38mm

TiAL Sport F38 External Wastegate specifications:

• Flange Materials - 304L Stainless
• Pipe Size - Inlet flange: 1.50” OD | Outlet Flange: 1.50” OD
• Spring Pressures - 0.25BAR to 1.6BAR (springs included)
• Thread - Air ports: M10x1.0
• 38mm Valve
