SPAL High Performance Radiator Fan 12" (Pull/1640cfm) - VA01-AP70/LL-36A

SPAL Automotive is a well renowned designer & manufacturer of high quality automotive electric radiator fans, founded in 1959 they have since become the supplier of choice for many high volume & specialist automotive manufacturers throughout the world. SPAL Automotive have extensive design, testing and manufacturing facilities that allow them to produce consistent high quality products that can withstand the most demanding conditions.

SPAL fans are IP68 rated, this protection offers the highest stability, durability and lifelong performance for motors used in extreme working conditions. All IP68 certified SPAL motors are Water Proof which means they are completely sealed and therefore protected against ingress of solid and liquid agents.

Specifications:

• Airflow Max: 2780m3/hr/1640cfm

• Weight: 2.35kg/5.17lbs

• Blade Diameter: ∅305mm/∅12.0"

• Housing Diameter: ∅330.8mm/∅13.02"

• Depth: ∅94.7mm/∅3.73"

• Voltage: 12v

• Current Continuous: 13.9-21.8a

• Power Consumption: 166.8-261.6w
• Fan Type: Pull

• Fitment: To Be Mounted Behind The Radiator
• Motor Type: High Performance, Long Life (Typically 10,000 hrs MTBF)

• Protection: IP68 Certified

• Warranty: 36 Months

• Manufacturer: SPAL Automotive

• Certifications: UNI EN ISO 9001:2008, ISO TS 16949, ISO 14001

• Part Number: VA01-AP70/LL-36A

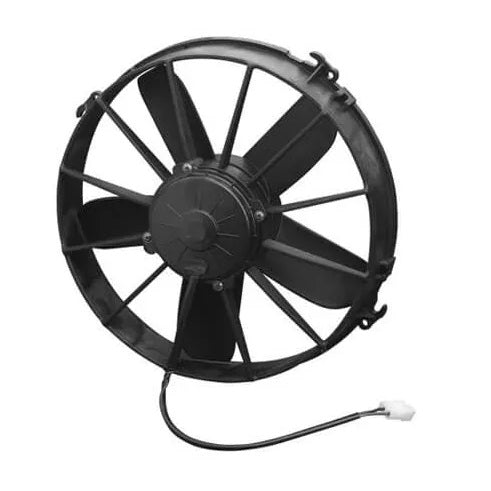

note: image is for illustration purposes and may differ on delivery
