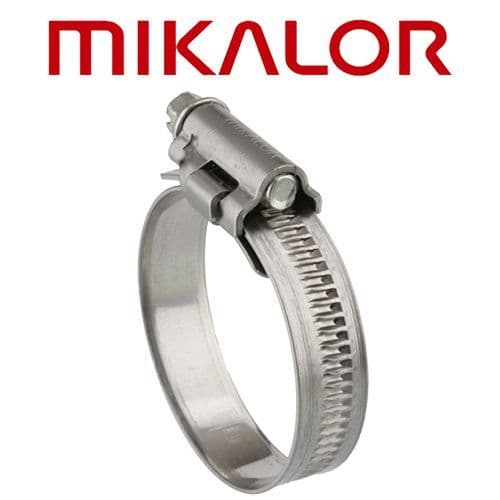

Mikalor ASFA-S W4 Clamp

Mikalor ASFA-S W4 Clamps feature an exclusive design of the housing, the ASFA "S" Worm-Drive Clip has excellent performance while being at the same time very compact.

The cold-formed stamped band thread, smoothed on the underside, combined with the beveled band edges protects the hose from any damage.

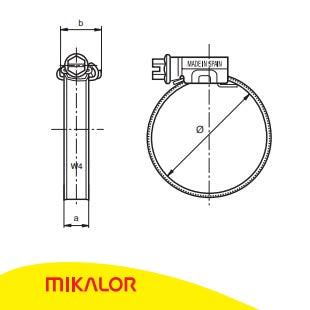

Manufactured from 304 Stainless steel, and the clamp width is 12mm (Diagram A on image).

The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling. Patented Worldwide.

Complies fully with the DIN 3017 norm and also with the RoHs directive EU 2002/95/EC dated 1st July 2006. Making this clip ideal for industrial applications.

Available from 8-16mm (0.31-0.63") up to 90-110mm (3.54-4.33").

Most Popular Clamp Sizes:

• 50.8mm/2.00" = 40-60mm/1.57-2.36"

• 57.15mm/2.25" = 40-60mm/1.57-2.36"

• 63.5mm/2.50" = 50-70mm/1.97-2.76"

• 69.85mm/2.75" = 60-80mm/2.36-3.15"

• 76.2mm/3.00" = 70-90mm/2.76-3.54"

• 101.6mm/4.00" = 90-110mm/3.54-4.33"

note: image is for illustration purposes and may differ on delivery
