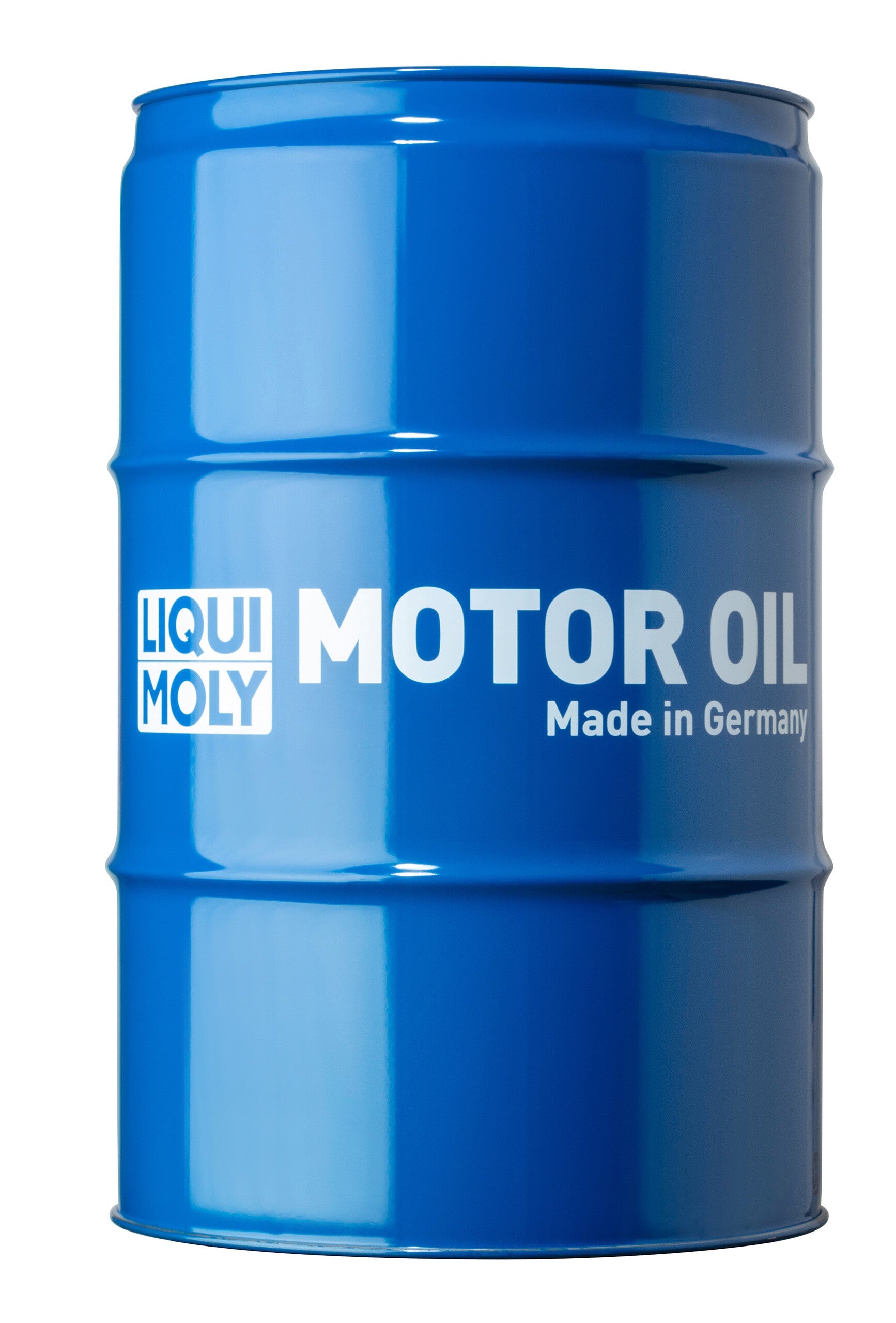

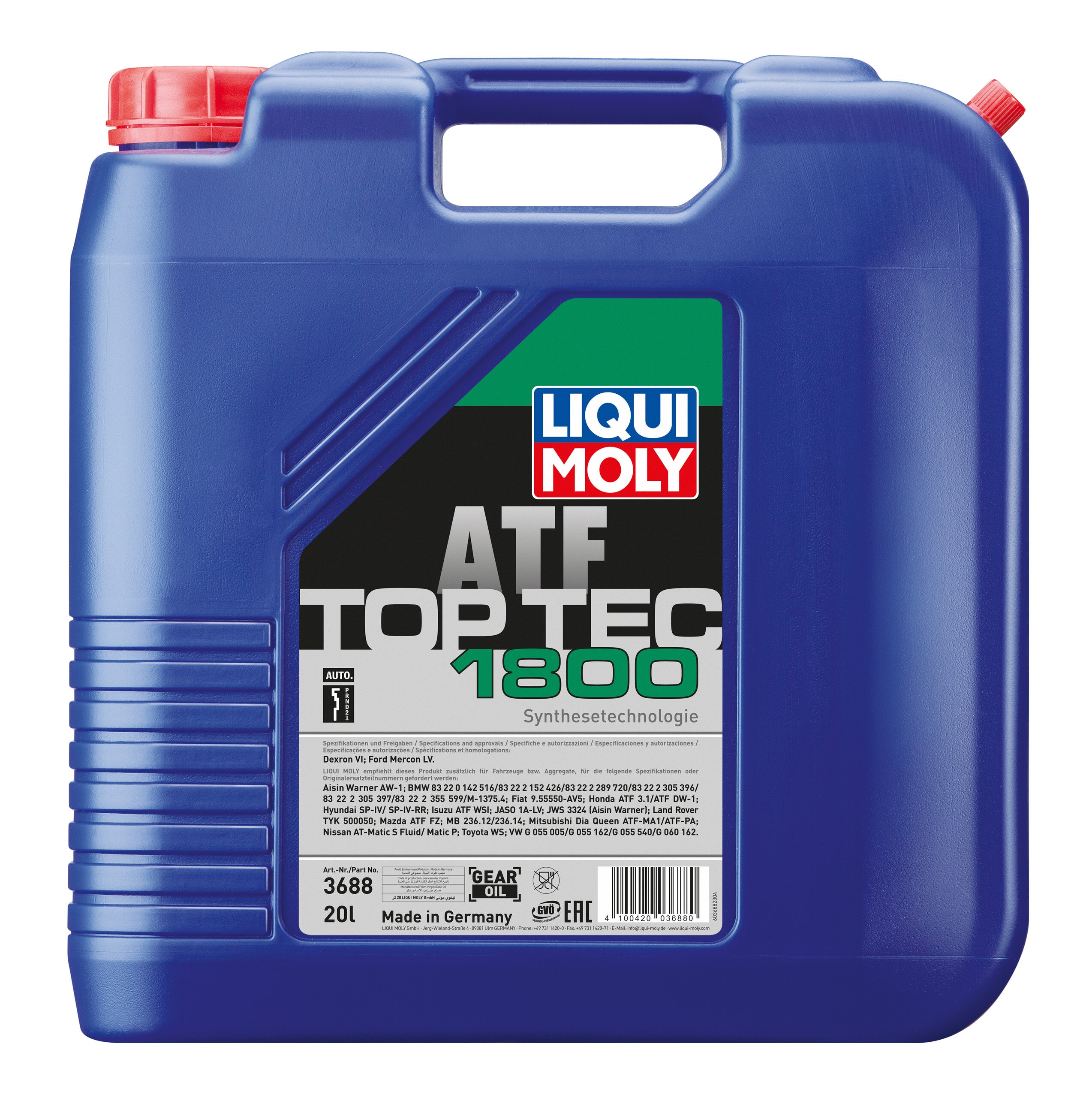

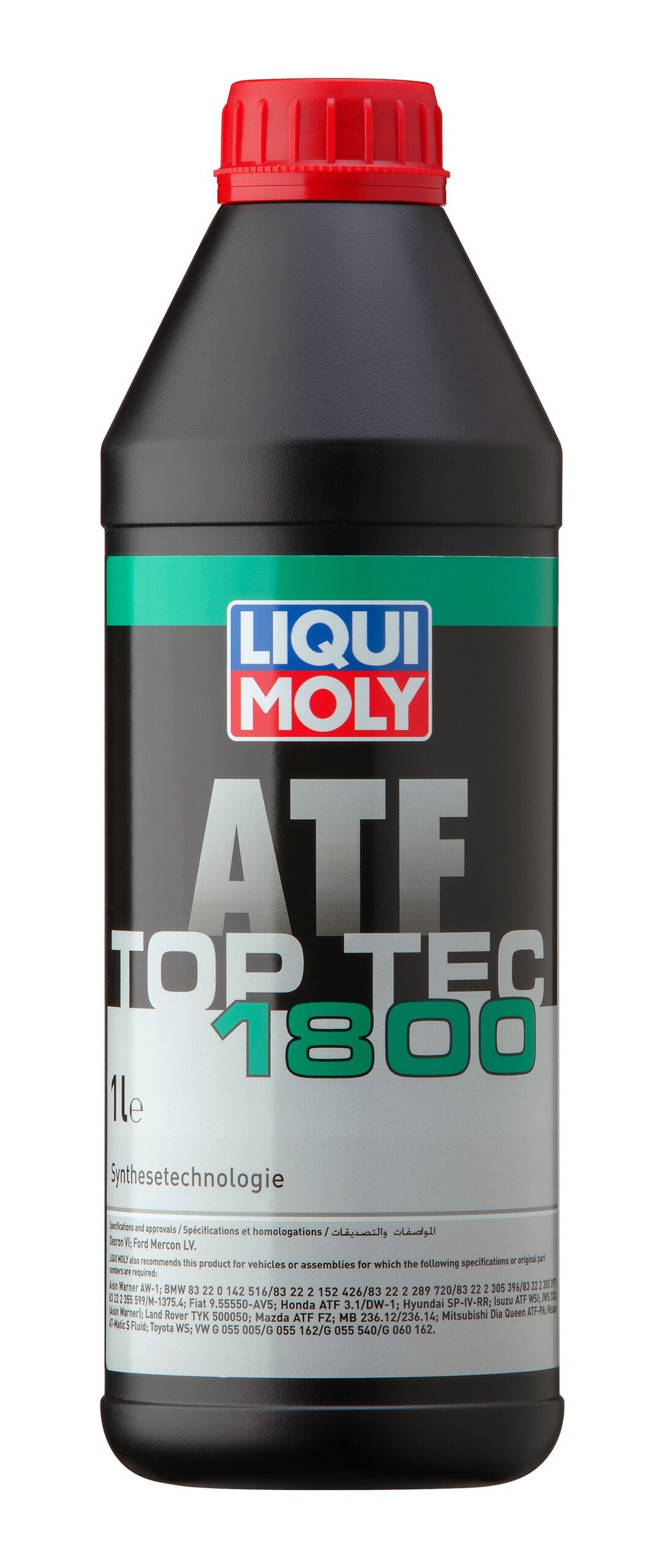

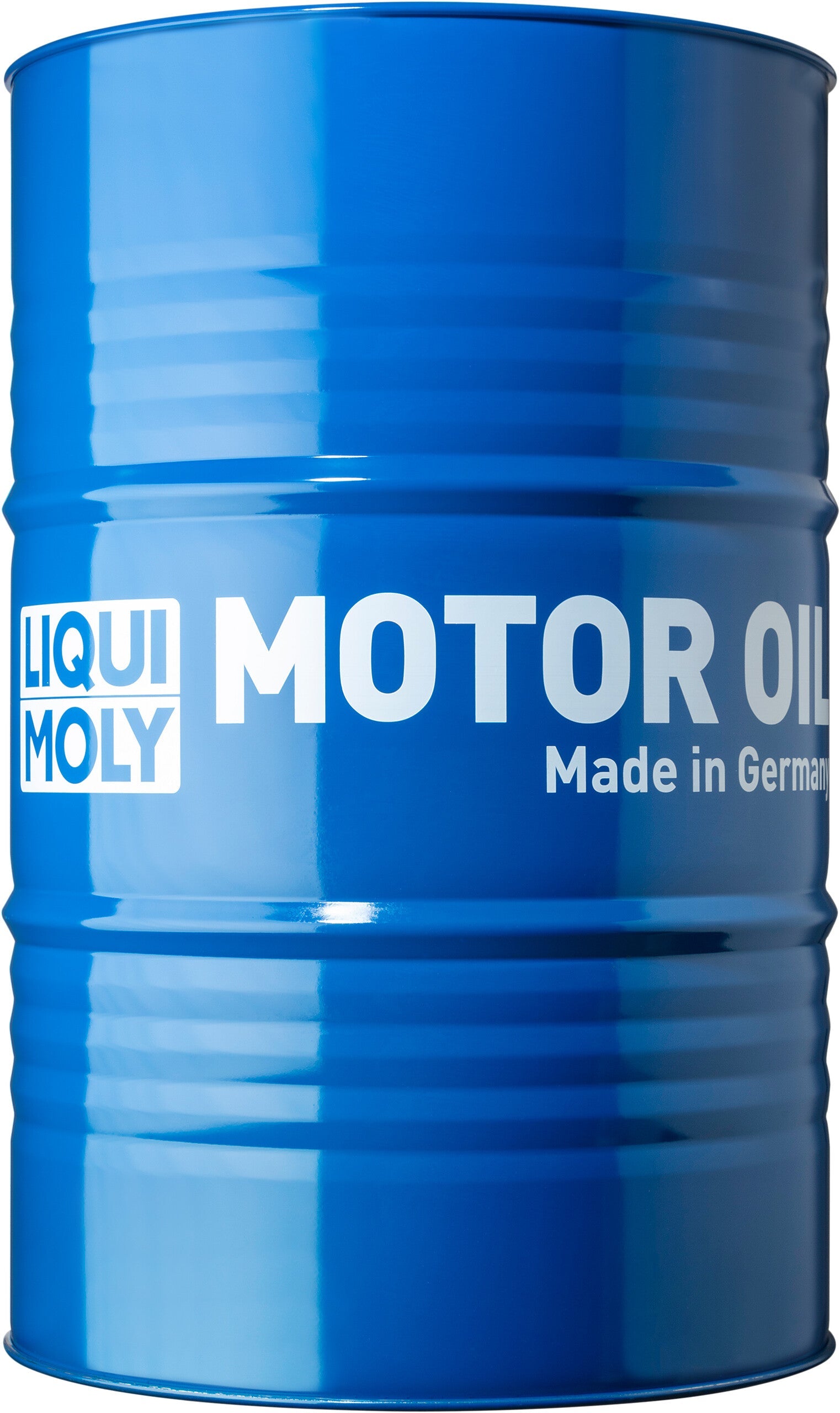

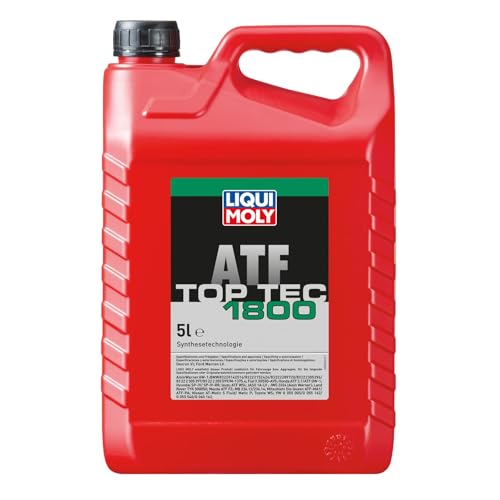

LIQUI MOLY Top Tec ATF 1800 Gear Oil
Description
The latest generation of low-viscosity high-performance automatic transmission fluid based on synthetic technology. With modern, powerful additive components. Guarantees outstanding aging and oxidation stability as well as ideal shifting under all operating conditions thanks to its extremely high viscosity index. Makes long oil change intervals possible.
Properties
- excellent viscosity/temperature properties
- prevents foam formation
- enables a multifaceted range of applications
- outstanding friction characteristics
- high resistance to aging
- very good low-temperature properties
- excellent corrosion protection
- high wear resistance
- outstanding resistance to oxidation
Specifications / Approvals
Dexron VI • Ford Mercon LV
LIQUI MOLY also recommends this product for vehicles or assemblies for which the following specifications or original part numbers are required:
- Aisin Warner AW-1
- BMW 83 22 0 142 516
- BMW 83 22 2 152 426
- BMW 83 22 2 289 720
- BMW 83 22 2 305 396
- BMW 83 22 2 305 397
- BMW 83 22 2 355 599
- BMW M-1375.4
- Fiat 9.55550-AV5
- Honda ATF 3.1
- Honda DW-1
- Hyundai SP-IV
- Hyundai SP-IV-RR
- Isuzu ATF WSI
- JASO 1A-LV
- JWS 3324 (Aisin Warner)
- Land Rover TYK 500050
- Mazda ATF FZ
- MB 236.12
- MB 236.14
- Mitsubishi Dia Queen ATFMA1
- Mitsubishi Dia Queen ATF-PA
- Nissan ATMatic S Fluid
- Nissan Matic P
- Toyota WS
- VW G 055 005
- VW G 055 162
- VW G 055 540
- VW G 060 162
Technical data
| Parameter | Value | Standard |
|---|---|---|
| Density at 15 °C | 0,845 g/cm³ | DIN 51757 |
| Viscosity at 40 °C | 28,5 mm²/s | ASTM D 7042-04 |
| Viscosity at 100 °C | 5,8 mm²/s | ASTM D 7042-04 |
| Viscosity at -40 °C (Brookfield) | ≤ 15000 mPas | ASTM D 2983-09 |
| Viscosity index | 155 | DIN ISO 2909 |
| Pour point | -48 °C | DIN ISO 3016 |
| Flash point | 210 °C | DIN ISO 2592 |
| Color / appearance | bräunlich/brownish | Color number (ASTM) 4 |
Areas of application
Primarily developed for automatic transmissions of various manufacturers such as Aisin Warner, ZF, etc., which are installed in various vehicles of Audi, BMW, Ford, Honda, Hyundai, Jeep, Jaguar, Kia, Land Rover, Lexus, Mazda, Mercedes-Benz, Mini, Opel, Peugeot, Porsche, Toyota, VW, Volvo, etc. Meets further manufacturer specifications, allowing it to cover an even wider range of vehicles.
Application
Shake well before use. The specifications and instructions from the assembly or vehicle manufacturer must be followed. Optimum effect only when the product is used unmixed.
