AIRTEC Uprated Auxiliary Radiator - Audi S1 Quattro 8X

AIRTEC Motorsport are proud to launch their uprated auxiliary radiators for DSG or engine coolant suitable for track or fast road use.

As part of their expanding Audi/VW and Seat product ranges, AIRTEC Motorsport are proud to launch their uprated auxiliary radiators for DSG or engine coolant suitable for track or fast road use.

During extended periods of track or fast road use, particularly for cars with increased power, both the DSG transmission’s oil and the engine’s coolant can reach temperatures that are too high to offer sufficient cooling protection properties. As a result, there is risk of damaging the transmission and/or engine, so the car’s ECU will automatically limit the engine’s torque output and extend the gearbox’s shift times, which makes it feel notably less responsive and eager. It can even cause permanent damage, if it persistently overheats.

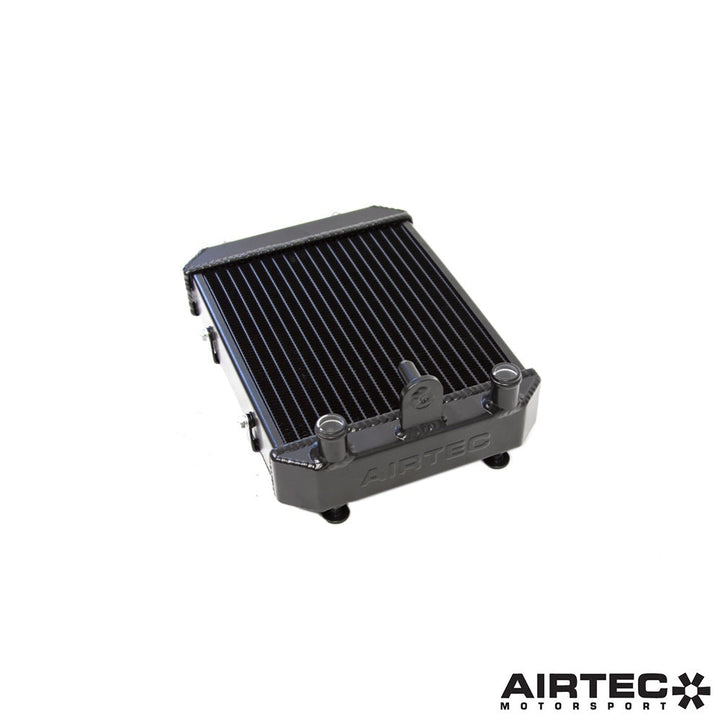

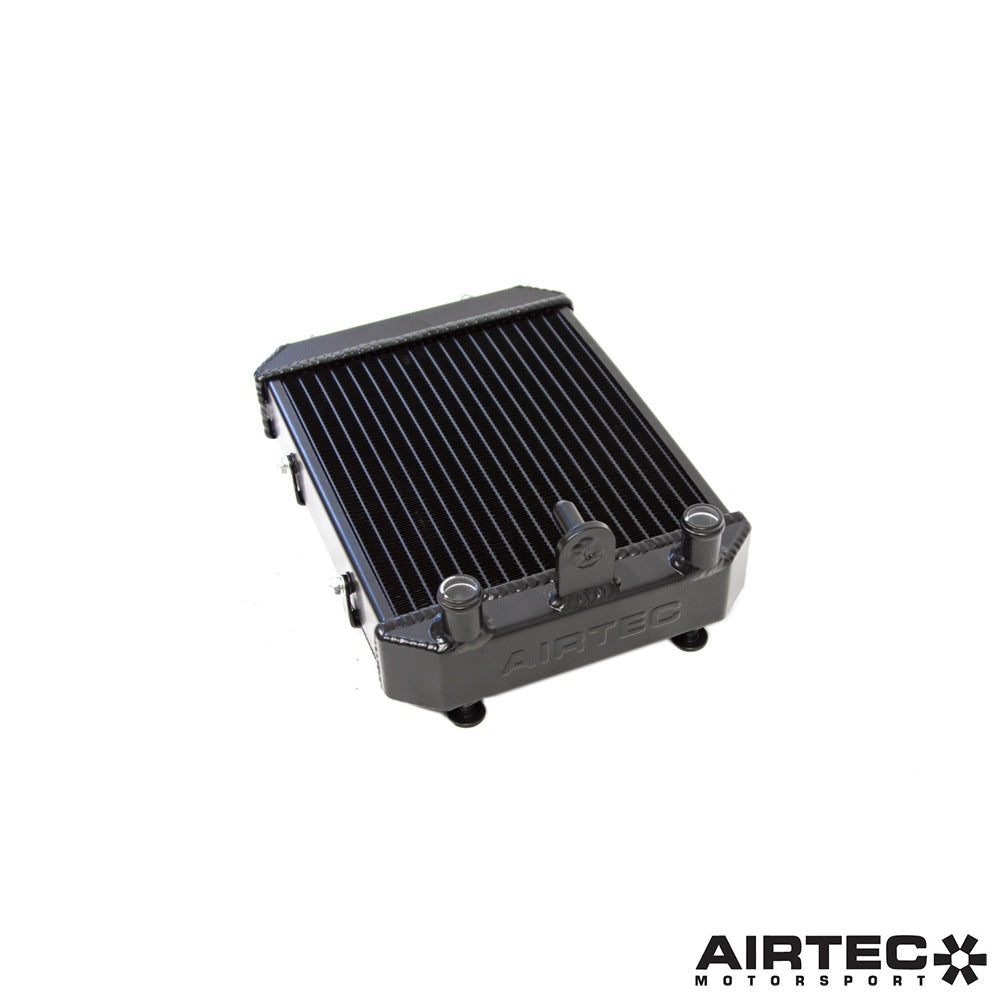

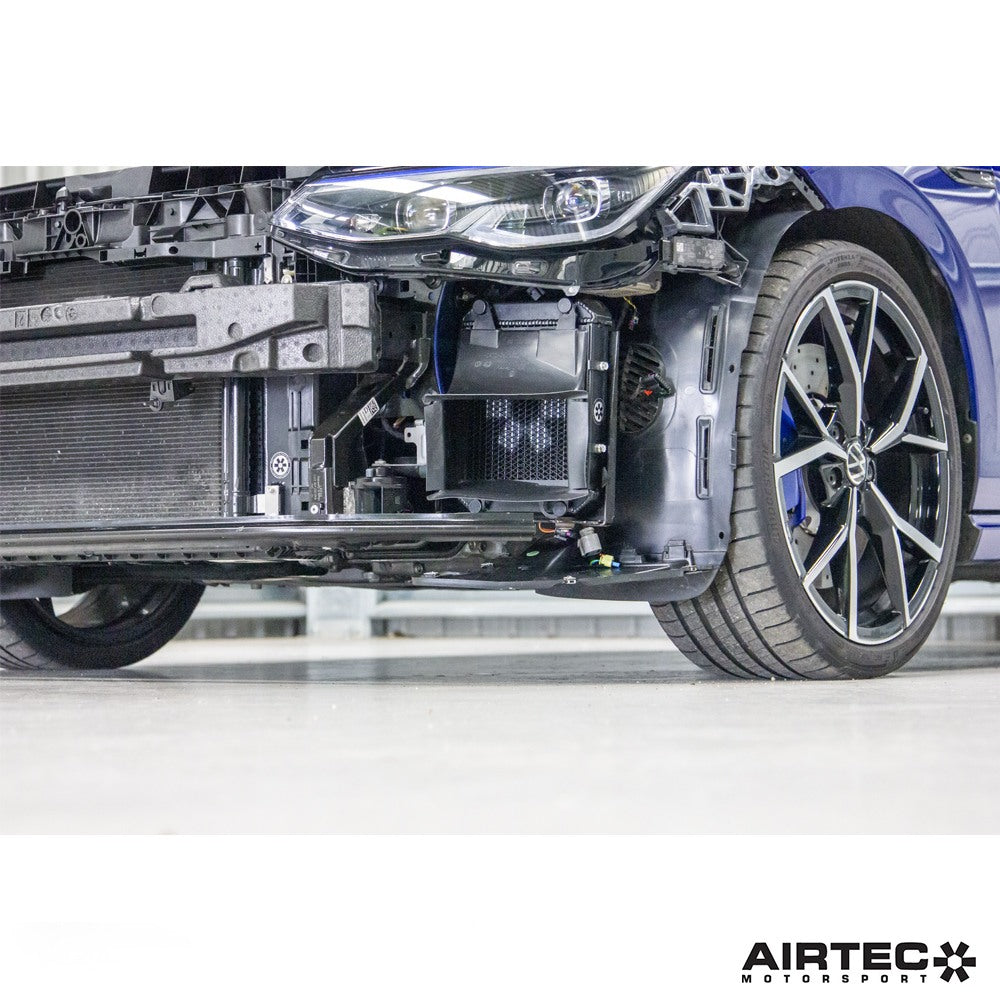

AIRTEC Motorsport’s solution to improving the DSG’s and engine’s running temperatures is to increase the size, capacity and ability of the original auxiliary radiators mounted behind either side of the bumper. By utilising the available space, AIRTEC developed a replacement radiator that’s wider and thicker. This means capacity is increased by a huge 67% over standard, whilst frontal area is also increased to help sufficiently cool the extra capacity.

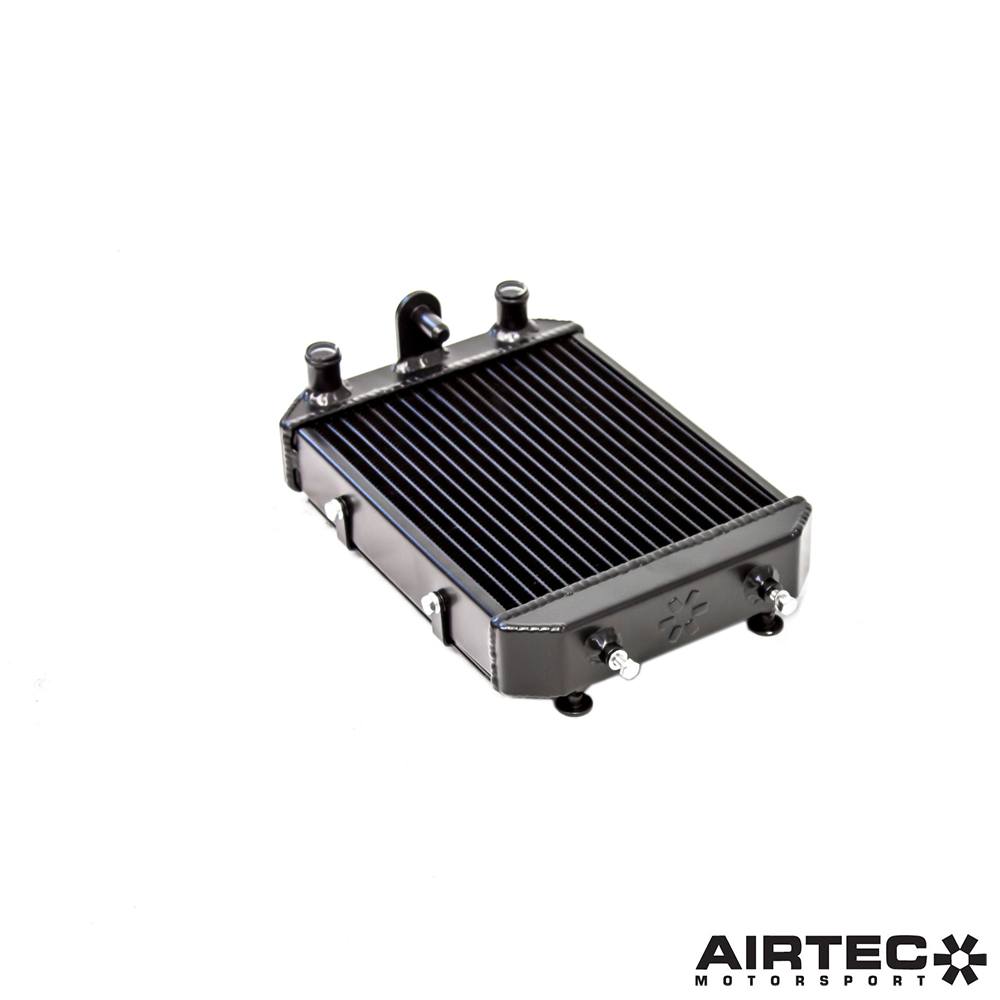

The core also features a quadruple pass design, which forces coolant entering it to pass up and down the core four times before it exits, increasing the time the coolant passes through the radiator to further decrease temperatures. The result is a radiator that is able to keep cooler for longer, therefore helping the car run at its optimum for longer.

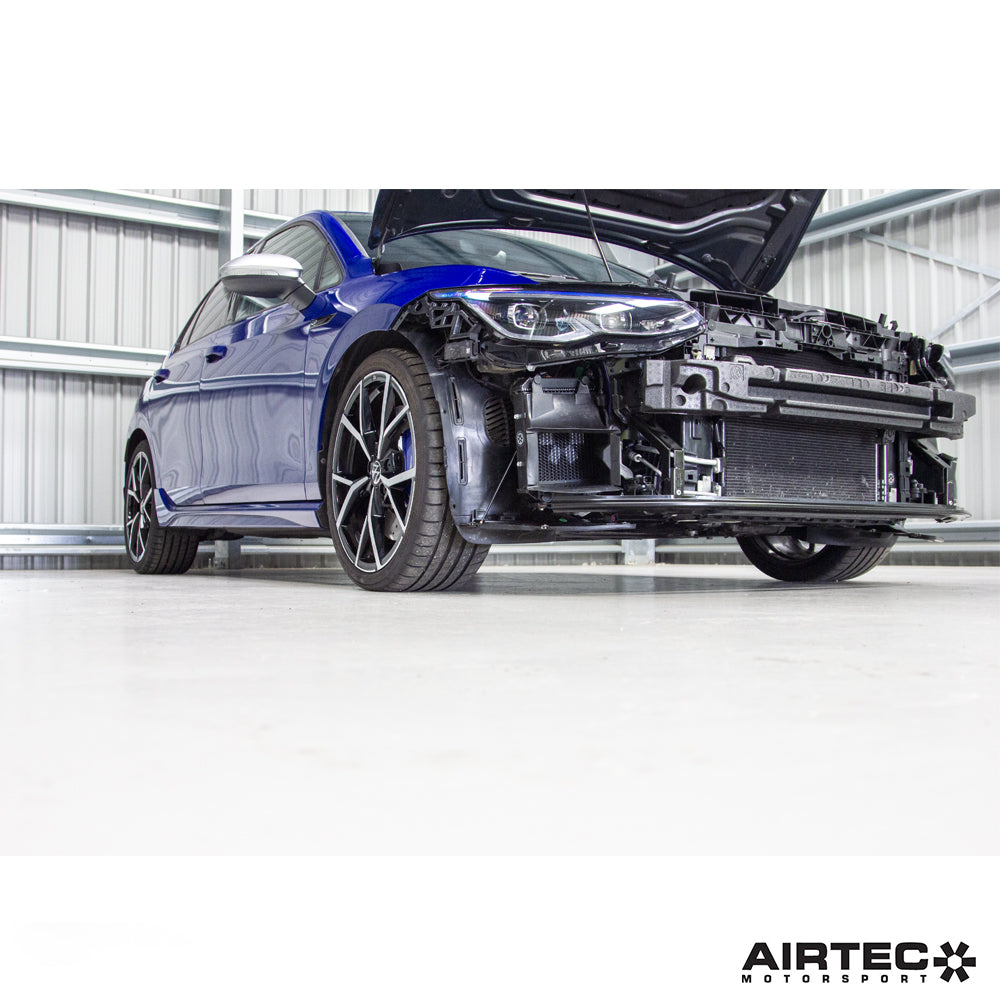

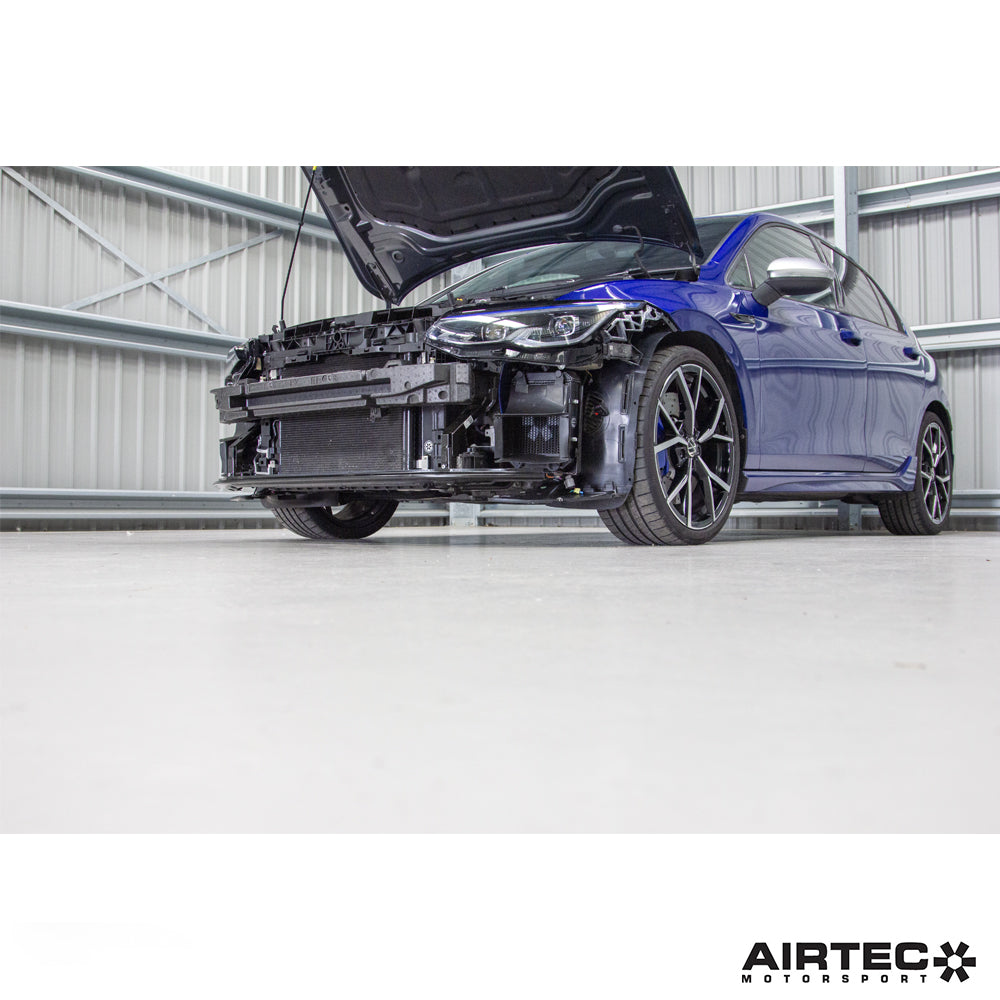

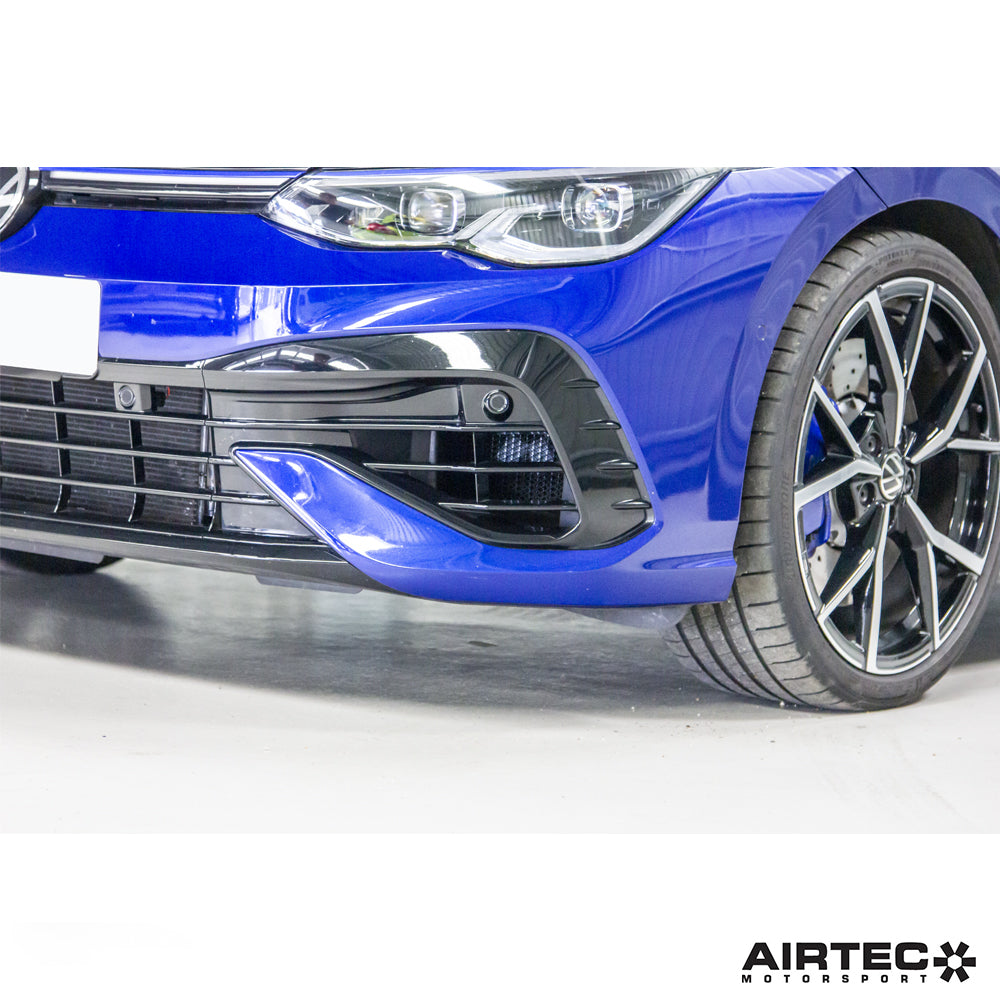

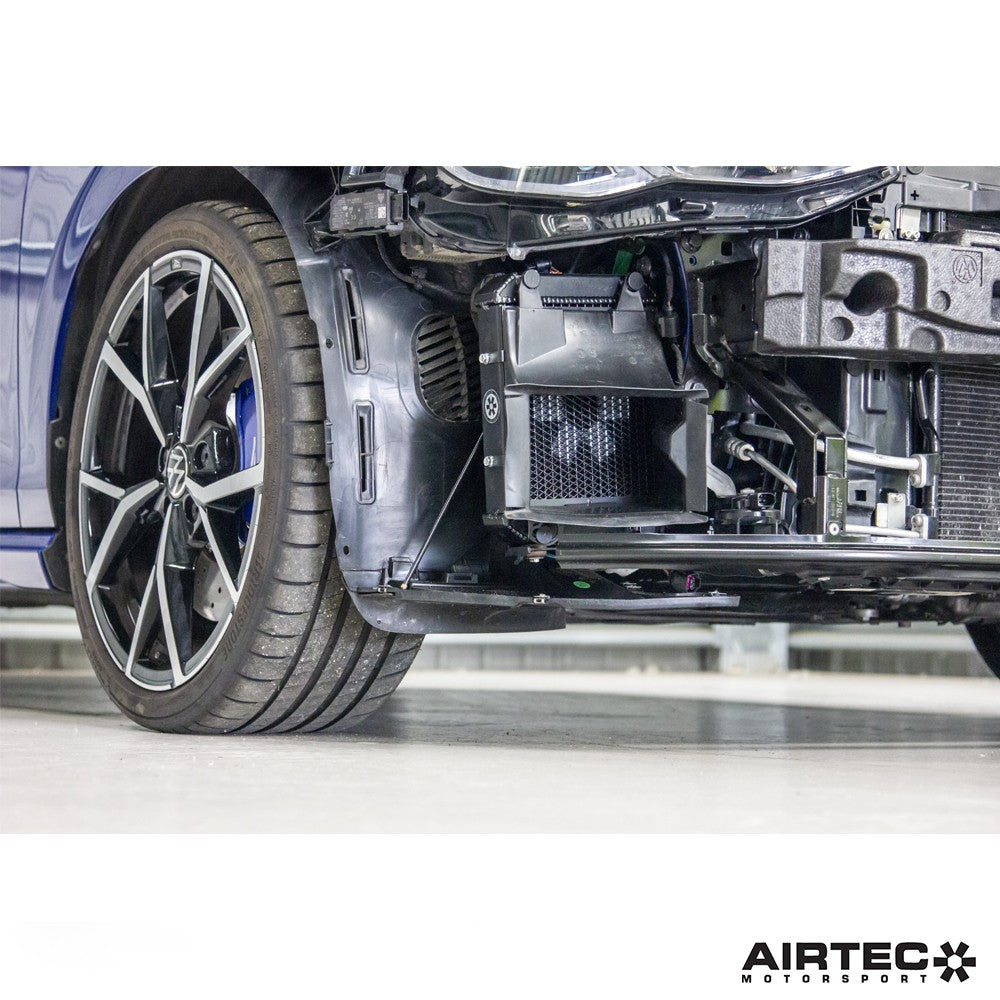

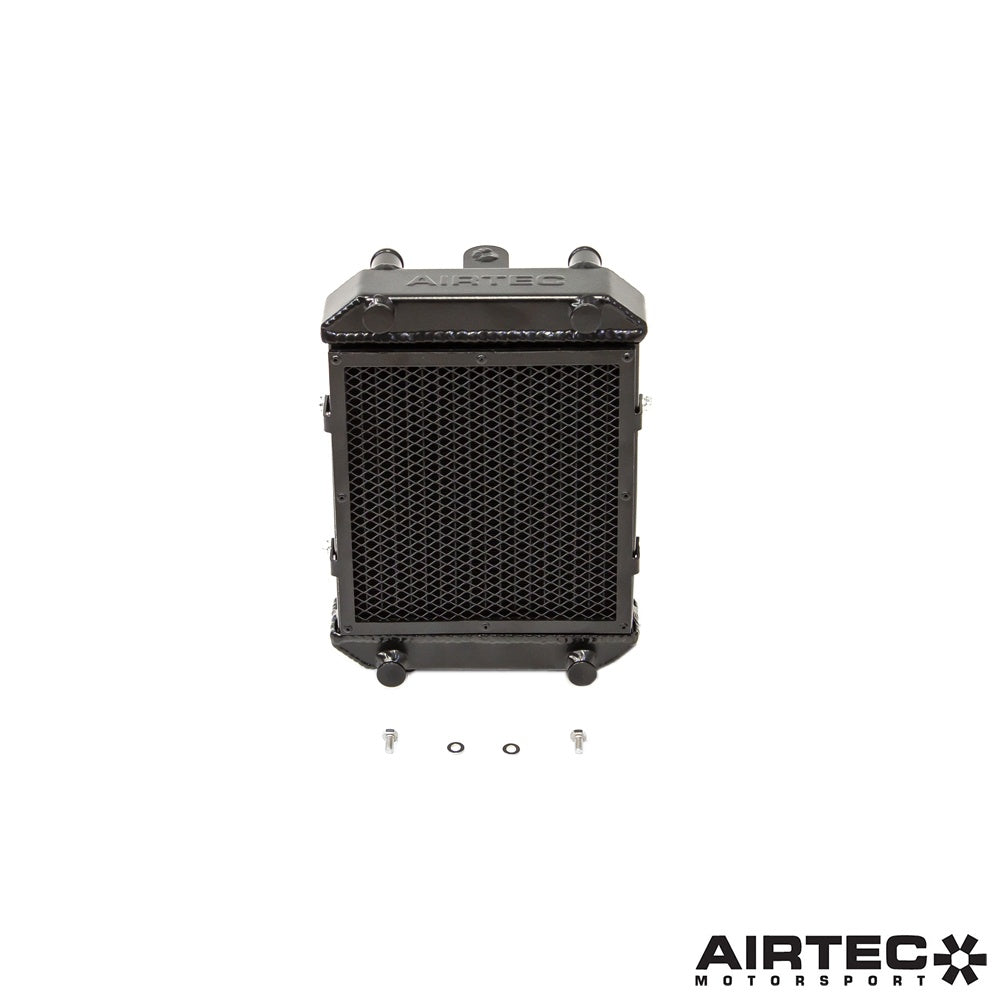

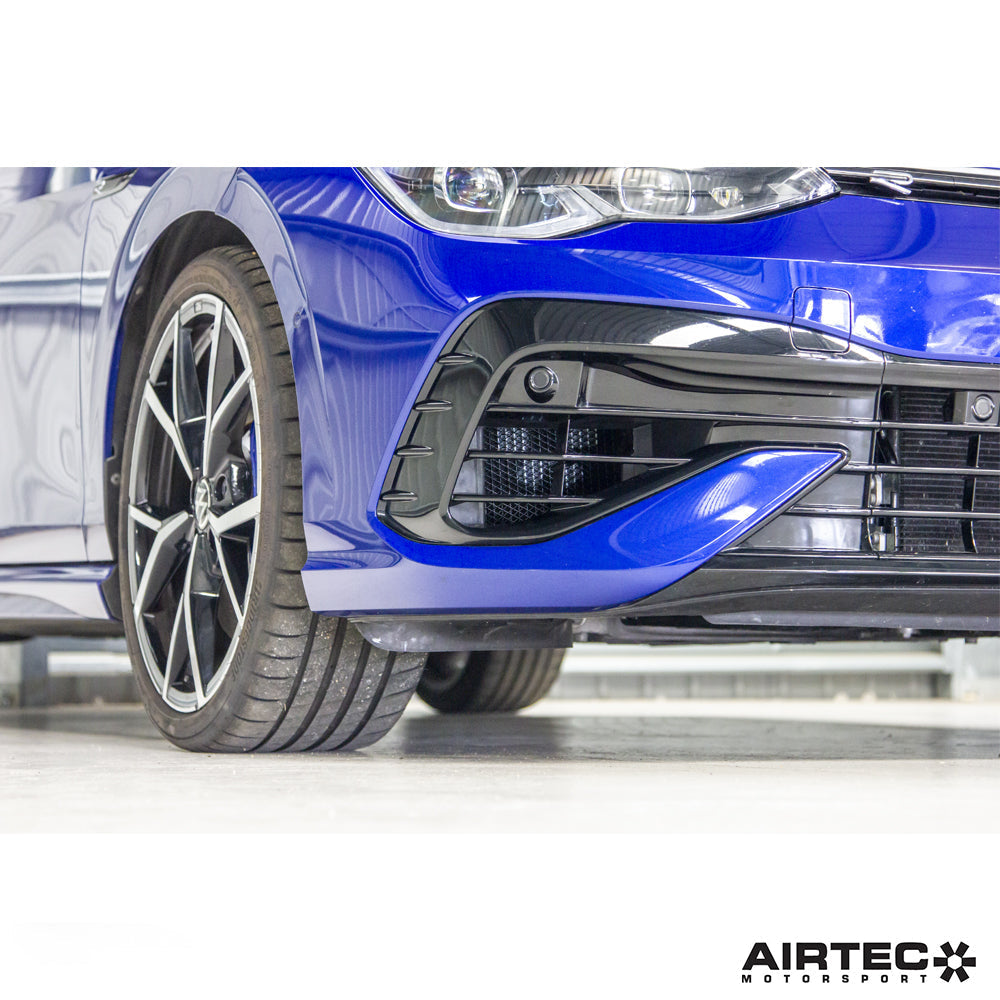

Despite the increases, the radiators fit neatly behind the bumper and requires only minor trimming of the original air duct to fit, otherwise using the OEM mounts and the original coolant connectors. To protect the larger radiator core from road debris, there is also a (removable) stone guard.

Finished in a high-quality powder-coated black finish, the fitting kit includes all fixtures and a detailed instruction fitting guide.

Can be used on either side.
Right-hand side radiator cooler = DSG
Left-hand side radiator cooler = Engine Coolant

Features:

• Available for both left- and right-hand sides
• 67% increase in capacity compared to original
• Quadruple-pass design for improved cooling
• Direct fit with no cutting or trimming
• Removeable stone guard to protect the core
• Comprehensive fitting guide

OEM Dimensions:
Width: 188mm
Height: 216mm
Depth: 26.5mm
Capacity: 1.08 litres

AIRTEC Dimensions:
Width: 200mm
Height: 216mm
Depth: 42mm
Capacity: 1.8 litres

Fits:

• Audi S1 8X
• Audi S3 8Y
• VW Golf R MK8

note: image is for illustration purposes and may differ on delivery
