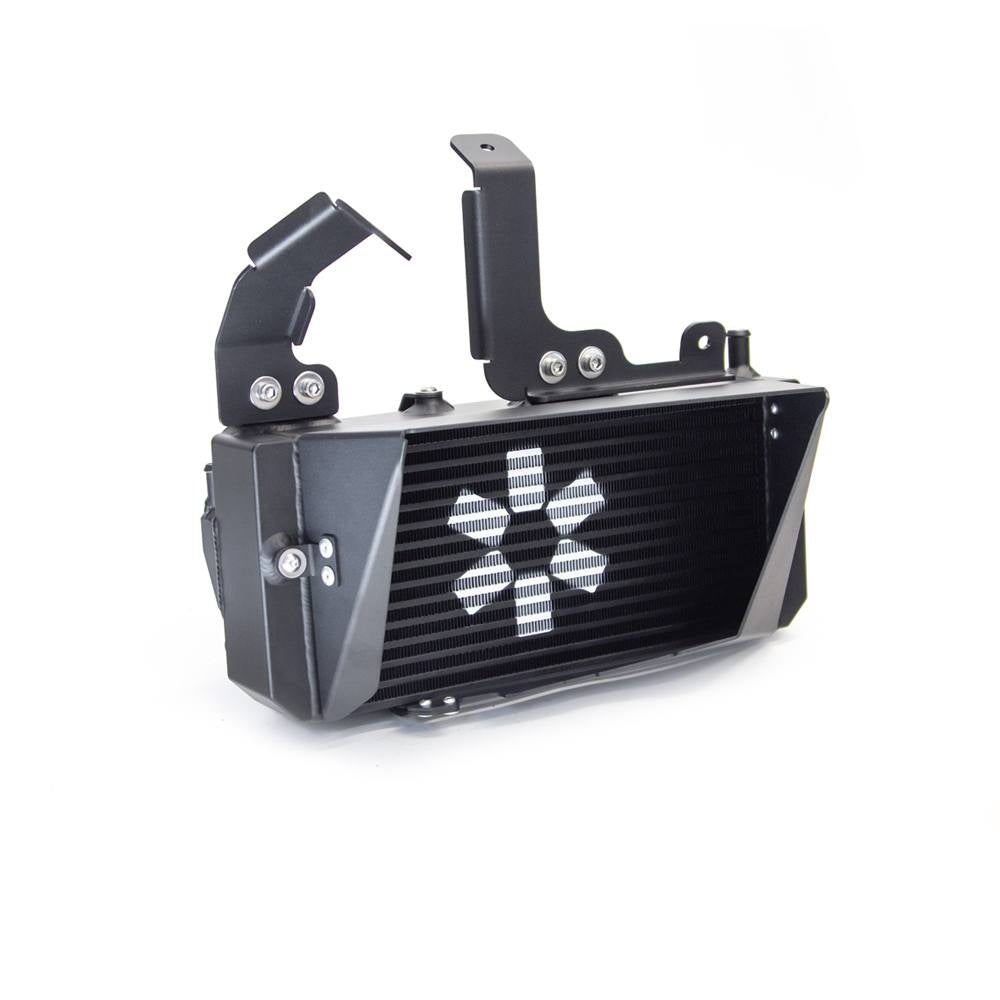

AIRTEC Automatic Gearbox Oil Cooler Kit - Toyota Yaris GR XP210

AIRTEC are proud to announce the release of their uprated automatic gearbox oil cooler suitable for track or fast road use.

Whilst the Gen 1 Yaris GR did not feature radiators or coolers behind the bumper, AIRTEC Motorsport created a pair fitted behind the bumper to help cooling and proved effective, so it was no surprise that the new and improved Gen 2 Yaris GR came fitted with an auxiliary radiator, and gearbox cooler for the automatic version (not manual) already located behind the bumper!

That gave AIRTEC a head start to create a direct replacement gearbox oil cooler that was larger in capacity to help cooling. As a result, the increased core size radiator is taller, wider and deeper, which means capacity is increased by 172% compared to standard, whilst frontal area is also increased by 45% to help cool the extra capacity.

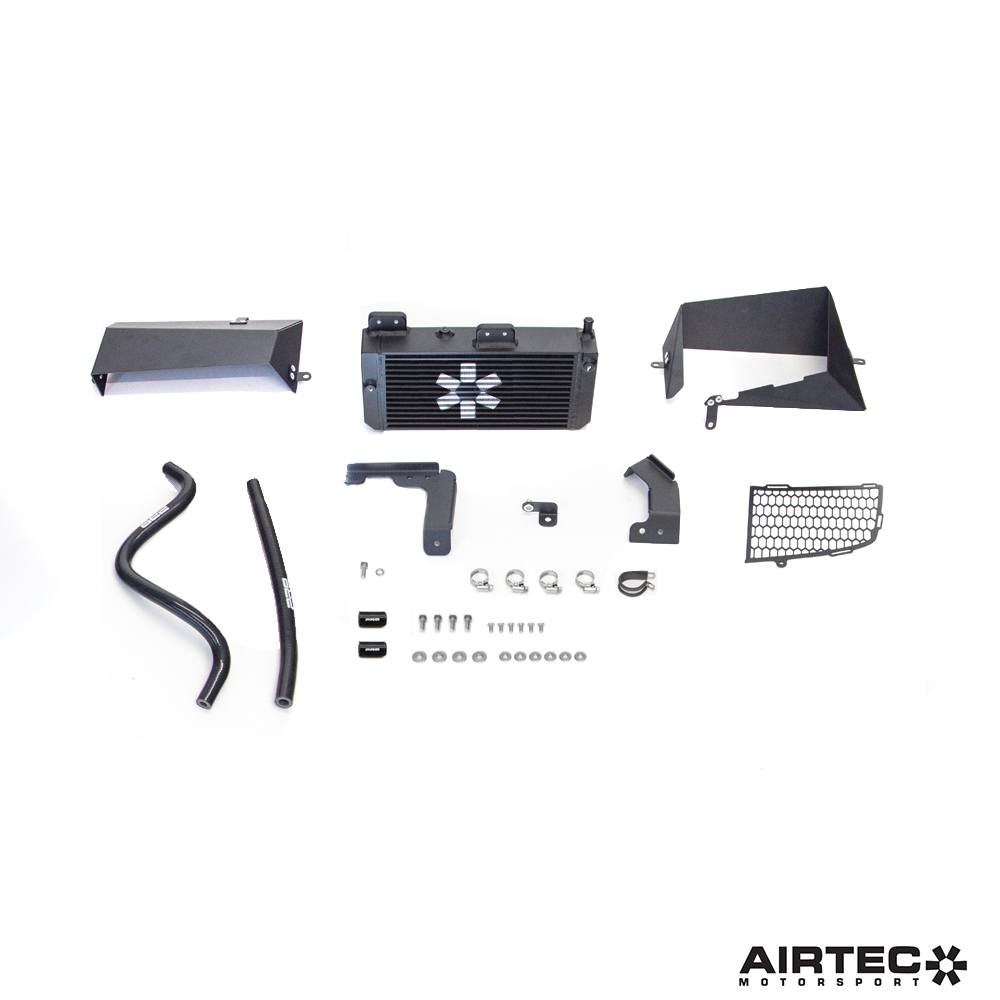

To ensure its effectiveness, the comprehensive package also features a front guide to direct fresh air into the oil cooler as well as a rear duct to ensure flow out. Finished in a high-quality black powder coat, the kit requires no trimming or cutting and can be reverted back to standard. The fitting kit includes all lines and fittings, as well as all fixtures required to fit, including a detailed installation guide.

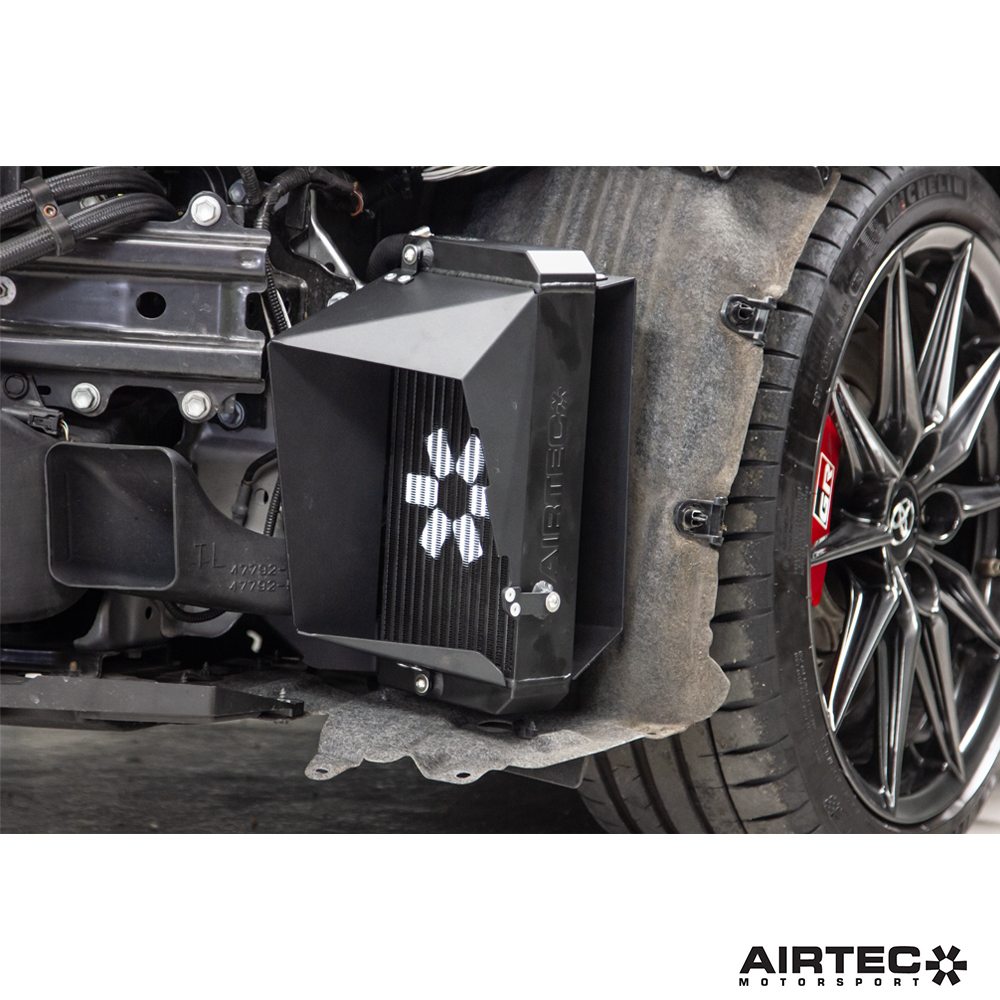

Despite the significant improvements, the oil cooler fits neatly behind the bumper and requires no modifications to fit and comes complete with new mounting bracket and oil lines. Finished in a high-quality powder-coated black finish, the comprehensive fitting kit includes a detailed instruction fitting guide.

Features:

• Comprehensive kit designed specifically for the Yaris GR Gen 2 Automatic

• 172% larger core compared to standard cooler

• 45% increase in frontal area compared to standard cooler

• Front guide to direct fresh air into the oil cooler and rear duct to ensure flow out

• Improved capacity and oil cooling ability

• Reduces transmission running temperature

• Direct replacement kit that requires no cutting or trimming

• Finished in high-quality black powder coat

• Includes all fittings and fixtures

• Features detailed fitting guide

note: check all connections at regular intervals, especially during the first few miles after installation, to inspect for leaks.
