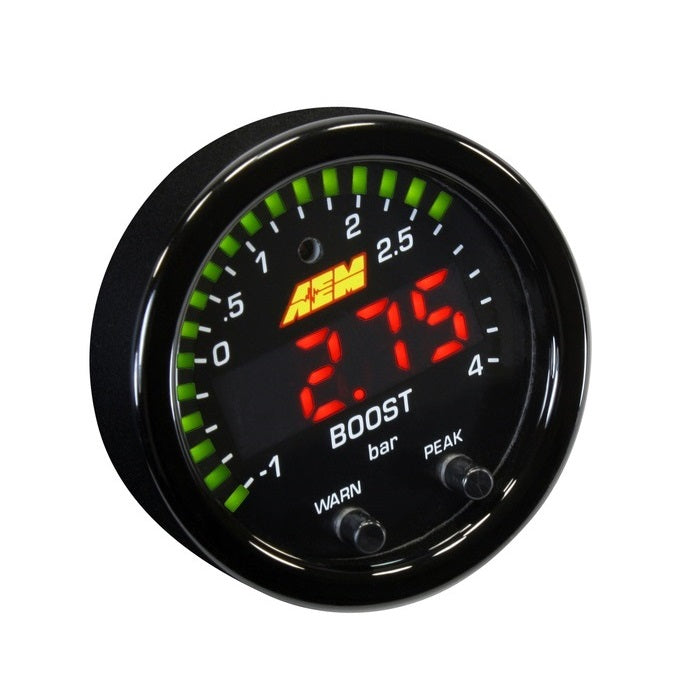

AEM X-Series Boost-Turbo Pressure 52mm Electrical Digital Gauge (4BAR-60PSI)

The AEM X-Series Boost/Turbo Pressure 52mm Electrical Digital Gauge displays highly accurate boost pressure readouts up to 60PSI or 4BAR (user selectable) from the high performance engine.

Easy to use Peak & Recall buttons via the gauge face as well as user selectable threshold warnings.

Features a bright LED display that is 87% larger than AEM's original digital gauges and provides better readability. The sweeping LED “needle” lines the edge of the gauge face for quick reference and the 33% overall increase in the gauge face display makes it easier to see at a glance.

All AEM X-Series gauges are equipped with auto dimming and locking connectors to ensure a positive connection between the harnesses and gauge.

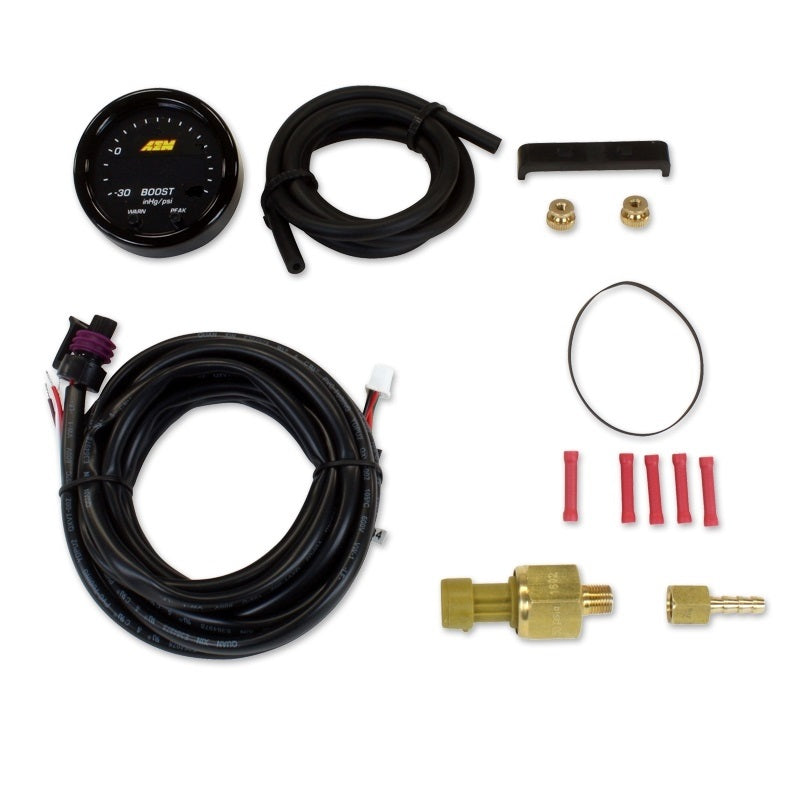

AEM X-Series Boost/Turbo Pressure 52mm Electrical Digital Gauge (BAR/PSI) features:

• User selectable standard or metric display (-30in/Hg to 60PSI / -1 to 4BAR)
• 52mm gauge diameter for easy mounting in gauge pods
• Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
• Peak/Recall via gauge face buttons
• User selectable threshold warnings

Gauge size - 52mm.

note: image is for illustration purposes and may differ on delivery
