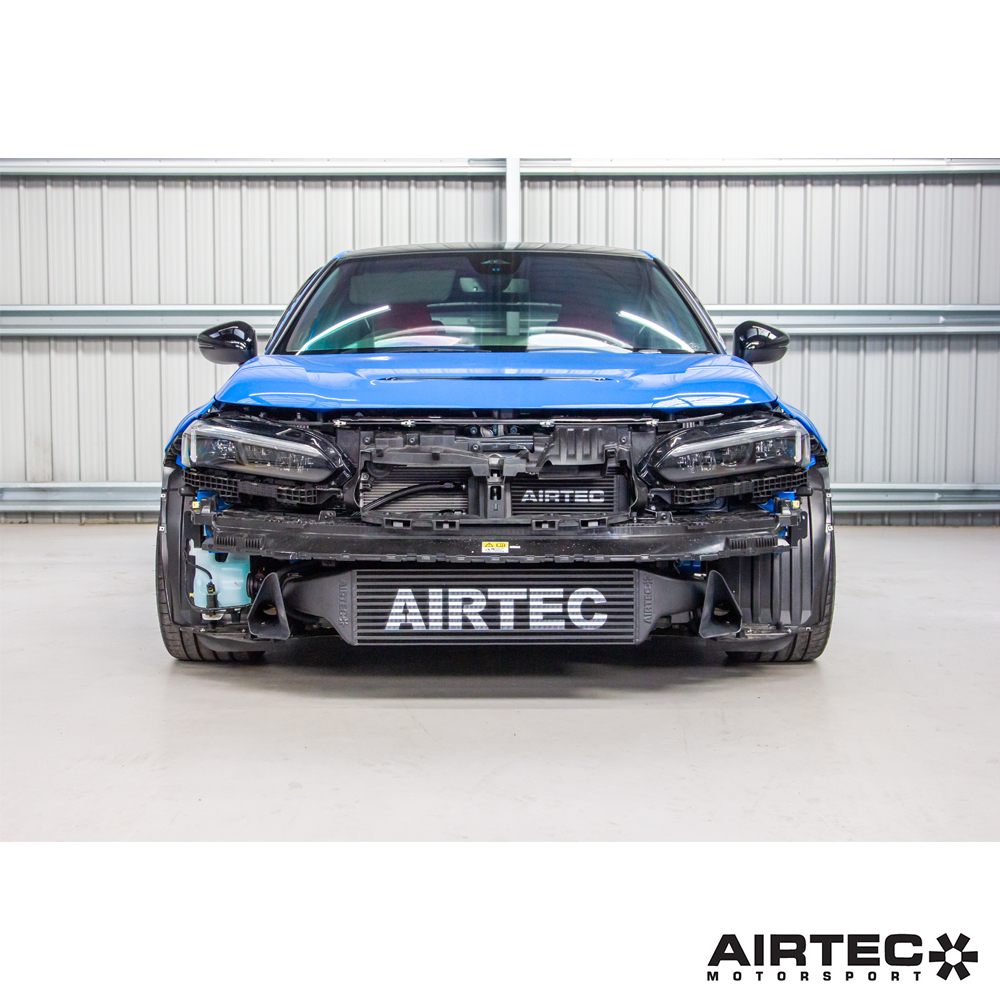

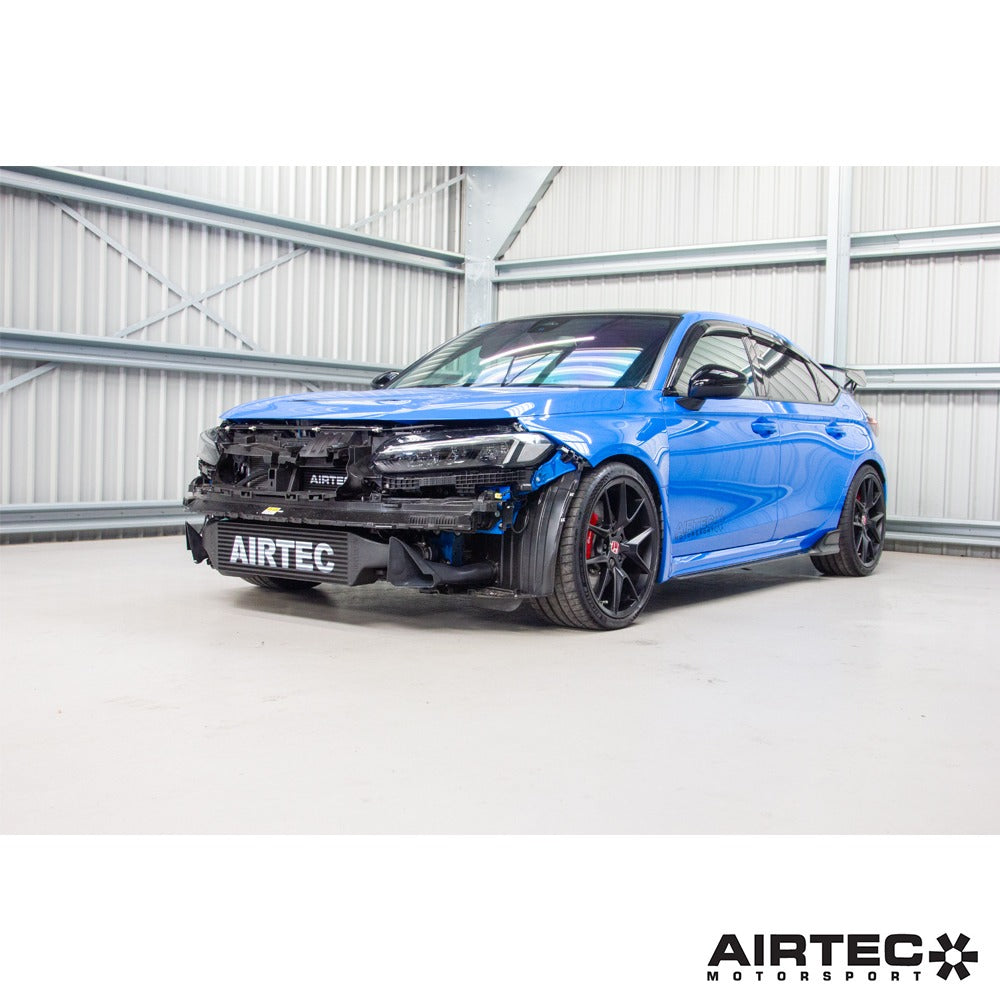

AIRTEC Front Mount Intercooler Kit - Honda Civic Type R FL5

AIRTEC Motorsport is proud to launch their intercooler kit for the FL5 Civic Type R, suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, AIRTEC have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

AIRTEC's solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a core design that is wider, taller and deeper.

This offers a massive 158% increase in overall capacity in comparison to the original intercooler, as well as a substantial 30% increase in frontal area over standard, which allows it to make the most of the air flow provided. Importantly, AIRTEC opted not to utilise a full height intercooler as this wouldn’t allow for an uprated oil cooler in the future, so looking at the bigger picture for a complete cooling package, AIRTEC chose a core that was a slightly higher and wider, but twice as deep. This still allows a huge increase in performance whilst allowing for an uprated oil cooler too.

The inlet and outlet sizes of the intercooler also increases from 55mm in and 59mm out to 65mm in and 70mm out, an increase of nearly 20% to further improve flow and can be used with the original pipework or the AIRTEC Motorsport larger diameter cold side boost pipe. The pipework also replaces the original O-ringed flanges with larger silicone hoses to improve flow and increase internal area.

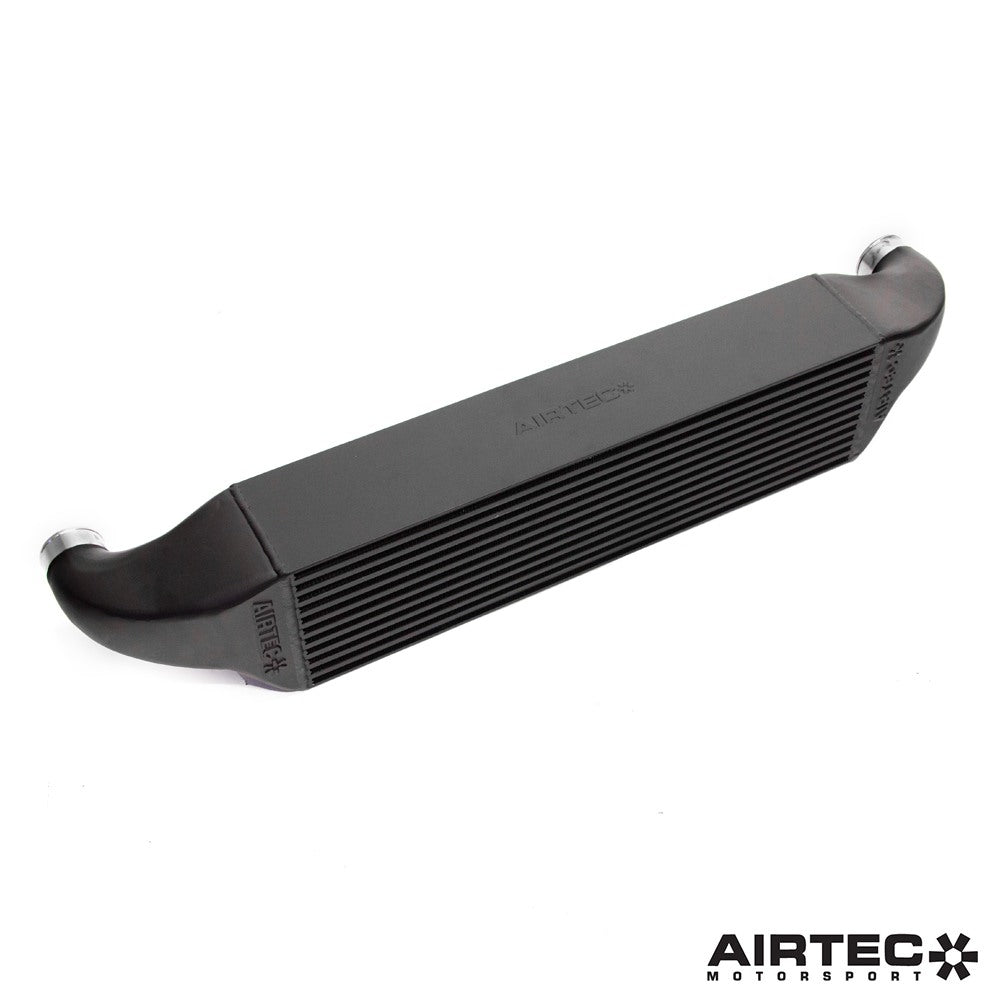

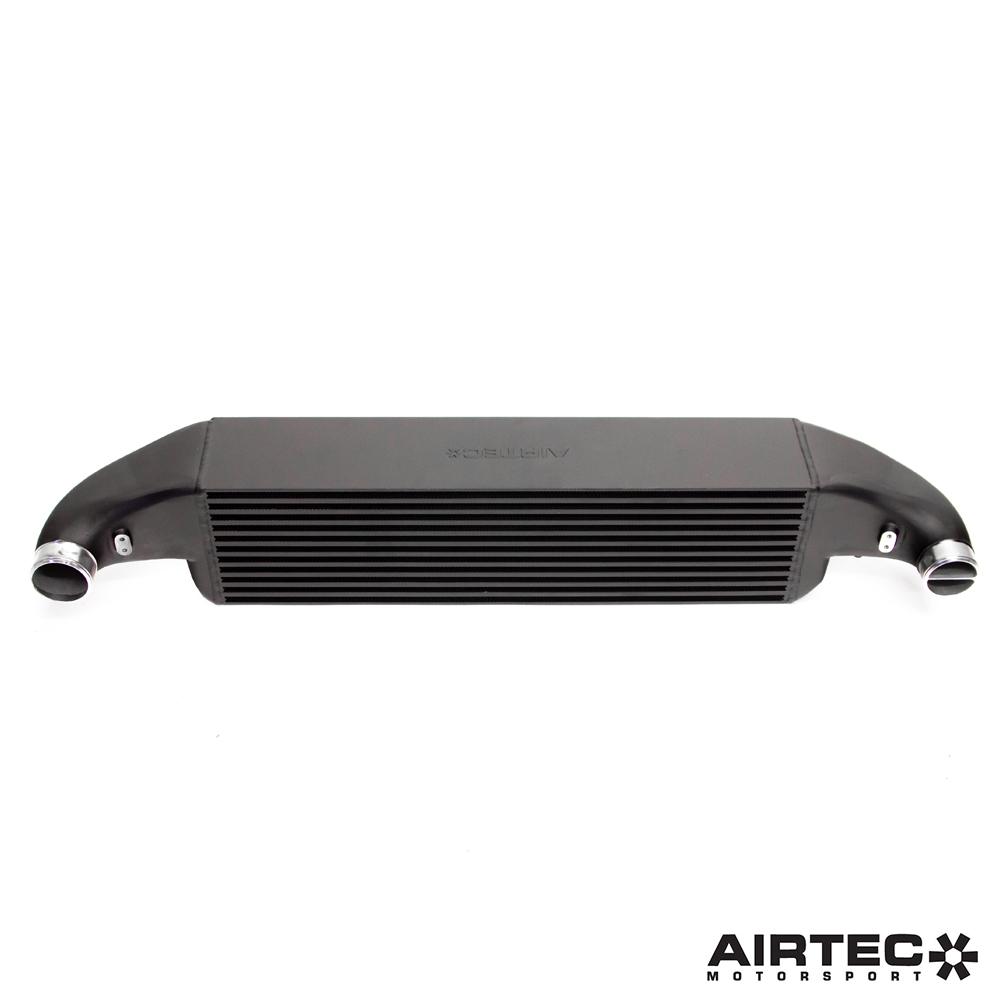

Together with AIRTEC's high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Available in a high quality powder coated black finish, the comprehensive kit is a direct replacement and comes with Pro Hoses silicone connectors, all fixtures and fittings, as well as detailed fitting instructions.

Its improved cooling efficiency and easy fitment makes it an essential modification for all modified Civic Type R FL5 models.

Dimensions:
OEM Intercooler
Width: 640mm
Height: 160mm
Depth: 65mm
Capacity: 6.7 litres
Front Area: 10,240cm²
Inlet: 55mm
Outlet: 59mm

AIRTEC Motorsport Intercooler
Width: 700mm
Height: 190mm
Depth: 130mm
Capacity: 17.3 litres
Front Area: 13,330cm²
Inlet: 65mm
Outlet: 70mm

Features:

• 158% increase in capacity compared to original intercooler
• 30% increase in frontal area compared to original intercooler
• Huge increase in cooling ability
• Reduced charge temperatures
• High-flow, moulded one-piece cast end tanks
• Larger inlet and outlets
• Powder coated black finish
• All fittings and fixtures included
• Comes with detailed fitting guide
